Finally, Long Range Warehouse Doorbell Kit that is Loud For Larger Warehouses and Shops

When you need a doorbell system for your warehouses you have a couple of options.  One is to wire a doorbell system or two, a wireless system.  You might have to count wired systems out because often times, getting a wired doorbell push button outside is not feasible.  However, when you search for a quality wireless door chime, they simply don’t have the range necessary to power through the obstacles seen in warehouses (concrete, metal, etc.).  That is, until we created the WDK-ERA Series of Wireless Door Chimes.
If you would rather have a kit with a visual notification, please see our Warehouse Doorbell Kit with a Strobe Light.
These products were specifically created for industrial, warehouse, shop, and office environments.  The “bones” of this kit is the ERA-UTDCR Long Range Doorbell Kit.  This kit features a wireless push button that can send a wireless signal up to 4,000 ft. away to the plugin receiver featured in the kit.  By itself, the receiver is loud at approximately 85 decibels.  In addition to this, you can purchase additional receivers and spread them throughout your facility to help distribute the sound.  By itself this is a great kit for businesses.
The WDK-ERA-KIT series of products are kits that feature the ERA-UTDCR and an additional bell (multiple choices available) that will increase the sound output to 90-115 decibels.  To hear each add-on sound, please scroll down the page.
Like other products in the ERA series of products you can add more push buttons, door window contacts, or plug in chime receivers to augment your system.
Each ERA-DCRX receiver has four zones and each zone features a live 12VDC output.  Zone 1, in this video, is paired with a long range wireless magnetic door contact that triggered when the door was opened.

The image below shows an example of how the strobe/siren (unit on the left) is wired to the ERA-DCRX receiver.  The cover over the receiver (unit on right) is removed to show the wiring.  After installation the cover should be snapped back onto the base unit.  In this example, the strobe is wired to the 12V DC output for zone one.  When this zone is triggered (by ERA-UTX, ERA-DSTX, or ERA-PIR) the chime will sound and the connect strobe/siren will trigger.

How to Wire a Device to the 12V DC Outputs

ERA-DCRX Long Range Receiver Features

• Plugs into standard wall outlet
• Receiver has four different zones and each zone will play one of twelve available sounds.  This allows you to group transmitters into one of these zones so that you can distinguish between the front door and back door, for example
• The receiver features 4 x 12V DC output and 1 x C-Form relays, one per zone to all integration into other devices*
• Small led on receiver will flash when corresponding zone is triggered
• Range from a transmitter to the receiver is 4,000 ft. line of sight.  Please note, in an environment like a warehouse, concrete, metal, etc. will diminish the signal
• One year manufacturer’s warranty
• Dimensions of receiver is 6” x 3.5” x 1.5”

ERA-DCRX Long Range Receiver Features

• May be used as a push button or door/window magnetic contact
• Transmitter features 1 x N/C or N/O connection for integration purposes
• Transmits a signal up to 4,000 ft. to receiver
• Powered by included lithium battery
• Outdoor rated, rugged ABS plastic cover
• Mounting hardware included
• LED indicator on button lights for 2-seconds when transmitting
• One year manufacturer’s warranty
• Dimensions for push button is 3.38” x 1.94” x .81”, Dimensions for magnetic contact is 2” x .56” x .38′

Types of Accessories (Fire Alarm Bells, Strobe, Sirens) you can wire to this kit:

Each kit comes with a bundle of 15 feet, 2-lead 18AWG wire used to connect the bell or accessory below to the live 12v output on the receiver.  Learn more about each one of the bell accessories by clicking the link to the product.  Scroll down the page to see how to wire the unit.
The receiver in this kit has 4 zones to which you will pair a transmitter/sensor, with each zone playing a distinct sound. In this kit, you will also select an external accessory (FIREBELL, SIREN, CHROME BELL.MINI STROBE-SIREN) that you can add to a particular zone to increase the sound.  In addition you can select strobes or other external sound devices to add to other zones, using the 12V DC output.

Available Accessories & Sounds

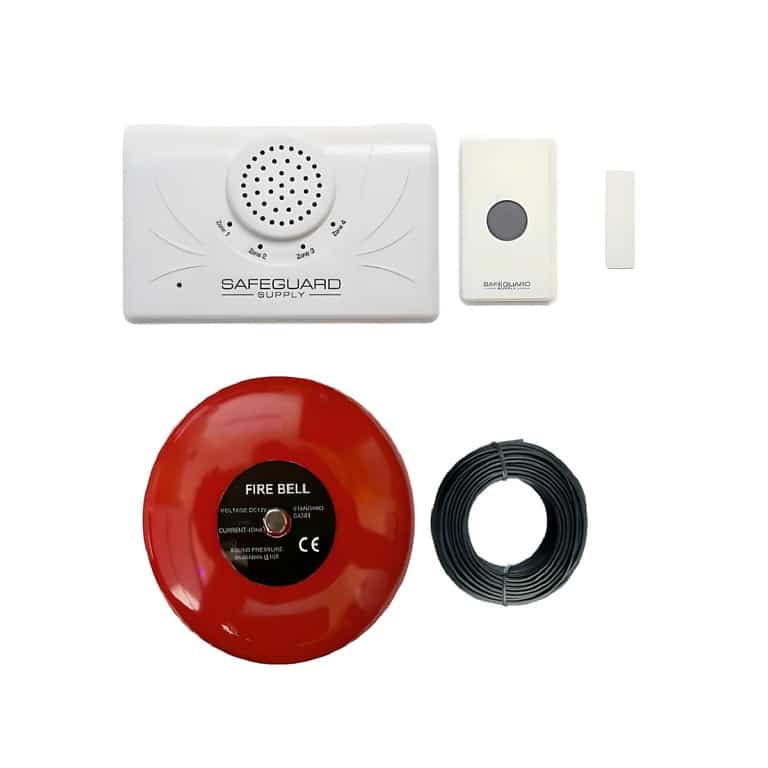

12V Fire Alarm Bell.  Sound is approximately 90 dBA. Click below to hear sound:

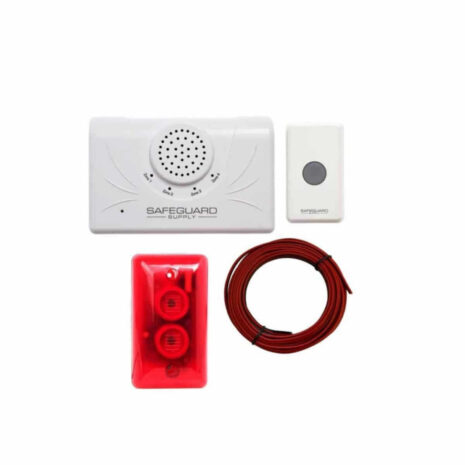

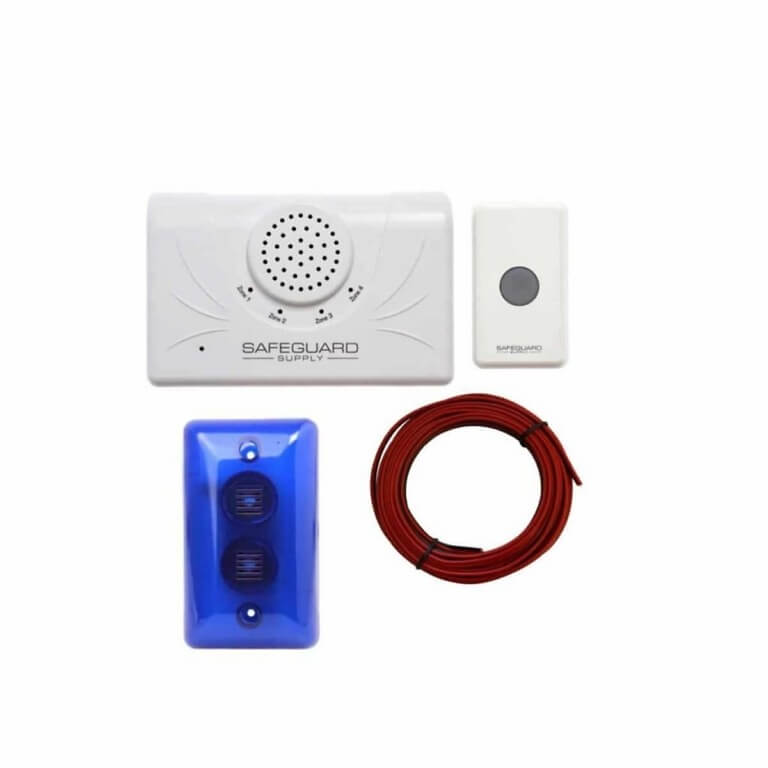

SS-SIRENSTROBE: Strobe/Sire Combo.  Bright, flashing strobe with very loud siren at 115 dBA.  Available in blue or red.

SS-SIREN is a loud, 115dbA 12V siren.  Great for loud areas.

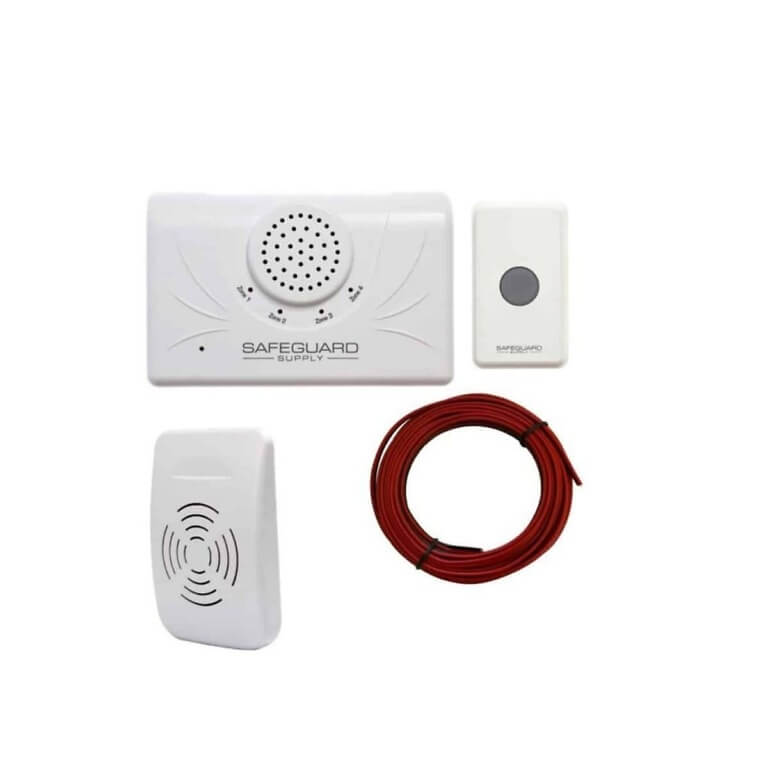

SS-PSIREN-W is a very loud piezo siren with a volume control knob.  There are two different sound options available for this product.

How do these accessories connect to the receiver?

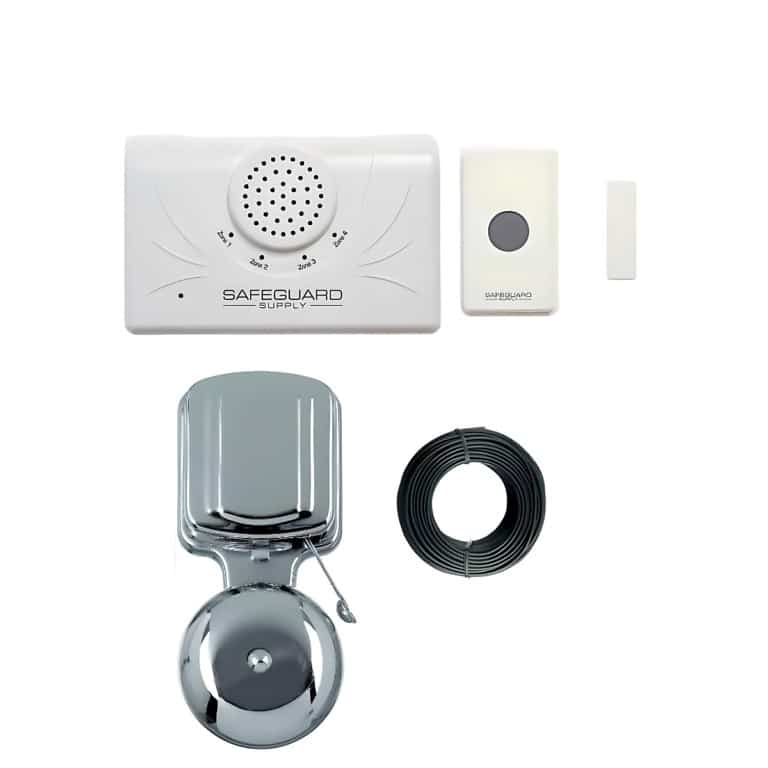

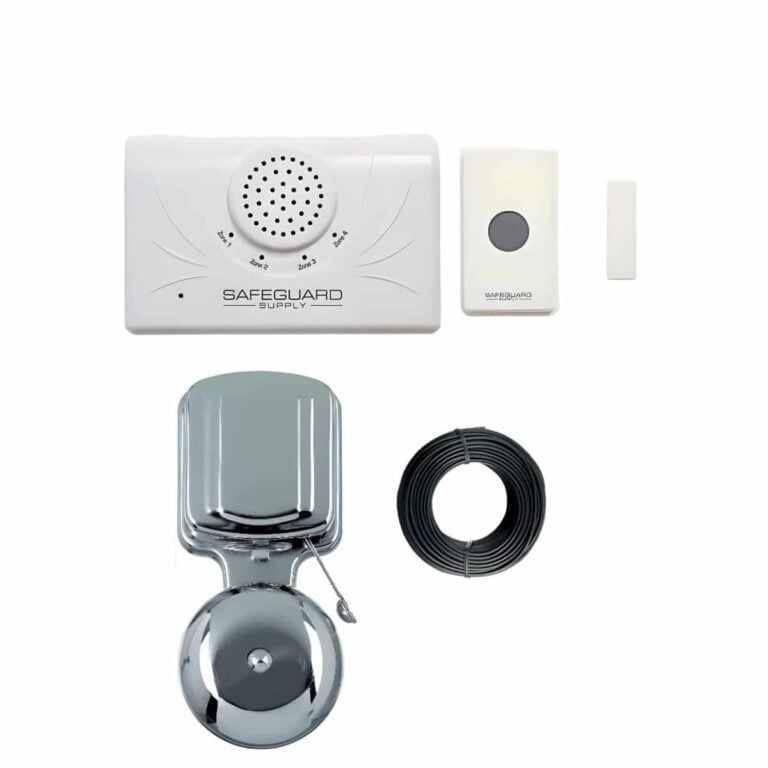

On the back of the receiver are 4 x 12V DC outputs.  Using the supplied wire, you  connect the wire from the accessory to the back of the receiver.   When the sensor transmits a signal the receiver will play the associated chime sound and send a 12V DC current to the connected device.   For example, if you have the 12V DC Chrome Buzzer connected to the receiver, when someone at the front door pushes the button, the receiver plays a chime sound and the chrome bell will go off for the set duration (5 seconds up to 2 minutes).

Wiring the 12V Output (one per zone)

The receiver also features 1 x C-FORM relay.  The time setting for the relay will be the same as set for the 12V DC outputs.  The C-Form relay may be set to any combinations of zones.  Meaning, you can set the relay when zone 1 triggers, or any other combination of zones.  It is important to note that the C-FORM relay DOES NOT supply power.  Below is an example wiring scenario using the C-FORM relay.

Available ERA-DCRX Receiver Sounds

please note.  These are the sounds the actual receiver plays.  They can be turned down or muted, or can play in conjunction with the add-on accessory chosen in the kit.
