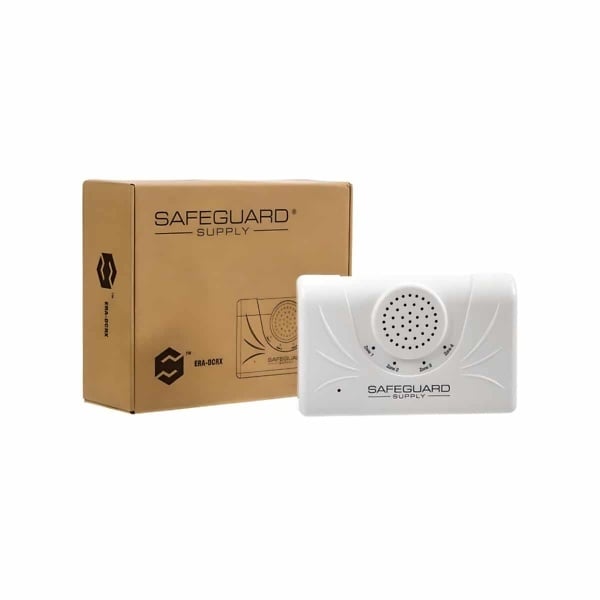

ERA-DCRX Safeguard Supply Wireless Doorbell Receiver for ERA Series

Introducing the ERA-DCRX, your versatile solution for expanding your Safeguard Supply ERA security system. This powerful wireless receiver integrates with existing ERA transmitters and sensors, providing extended coverage and customized alerts for warehouses, offices, and even large homes.

Key Features of the ERA-DCRX Warehouse Door Chime Receiver:

• Amplify Your Alerts: The ERA-DCRX boasts an impressive 4,000-foot range, ensuring clear notifications even in sprawling spaces.
• Zone-Based Customization: Divide your property into four distinct zones, assigning unique melodies to easily identify entry points.
• 12 Melodious Choices: Select from a library of 12 distinct tones and melodies to personalize your alert system.
• Expandable & Versatile: Add multiple receivers to cover wider areas or use the relay/DC outputs for external devices like strobes or sirens.
• Simple Setup & Use: The receiver plugs into a standard outlet and easily pairs with compatible ERA transmitters.
• Reliable Performance: Enjoy peace of mind with a one-year manufacturer’s warranty.

Common Uses of the ERA-DCRX Wireless Doorbell Receiver for Shops and Warehouses

• Warehouse Entry Alert: Be notified immediately of deliveries, visitors, or unauthorized access.
• Office Door Chime: Enhance security and convenience in large office buildings.
• Multi-Building Coverage: Extend your alert system across separate structures within your property.
• Large Home Security: Ensure comprehensive coverage for sprawling residences.

Upgrade your security today with the feature-packed ERA-DCRX Wireless Warehouse Doorbell Receiver. Order yours now!

ERA-DCRX Wireless Receiver Highlights

• 4,000ft Wireless Range
• 4 Programmable Zones
• 12 Selectable Melodies
• 90 dB Volume
• C-Relay & 4 x 12V DC Output
• Standard Wall Outlet Powered
• One-Year Warranty

The ERA-DCRX is a wireless warehouse doorbell receiver (which may be used in various locations) compatible with the Safeguard Supply ERA series of products (except the ERA-PIR-SPK, a stand-alone product). The receiver plugs into a standard wall outlet and will play one of four tones when triggered by a compatible transmitter/sensor. The receiver plays at approximately 90 dB and has a volume control knob that allows you to turn the volume down or up.

The receiver gets a wireless signal from a compatible receiver, such as the driveway alert sensor, an outdoor-rated motion-based sensor, a door/window magnetic contact, or a push-button. Program transmitters and sensors to a zone on the receiver, program a melody to a zone, and each triggered sensor will make the receiver play a sound (scroll below to hear available sounds).

Real Use Scenario of the ERA-DCRX Wireless Doorbell Receiver for Warehouses and Shops

Let’s say you have a large warehouse with two entry doors and would like to place a wireless push button outside the door. For the first push-button, the ERA-UTX, on your exterior door, you can associate it with Zone 1 on the receiver, and when triggered, it will play the “Classical” sound. For a second door, you can place another push button outside and associate it with zone 2, and it will play the “Westminster” melody.

You can use this receiver to expand your existing system. For example, if you are using the WDK-ERA-STROBE Warehouse Doorbell Kit and need to put a receiver in more than one location, the ERA-DCRX is the desktop version of the receiver you would purchase. This is a replacement part if you have an existing system and need to replace a receiver.

ERA-DCRX Product Features:

• The receiver must be paired with a compatible ERA series transmitter.
• The receiver plugs into a standard wall outlet.
• The receiver has four zones. Transmitters/sensors are paired into a respective zone.
• Each zone plays a distinct tone/melody with one of twelve melody chimes..
• The receiver may be placed up to 4,000 feet from the compatible transmitter.
• There is a c-relay available and a 4 x 12V DC output you can pair to a zone.
• One-year manufacturer’s warranty.
• The sound level is approximately 90 dBA.

*For detailed information about the receiver, please visit the ERA-UTDCR Warehouse Doorbell Kit product page.

Power Adapter Specifications and International Use

The ERA-DCRX uses its supplied plug-in AC/DC power adapter.

• AC input: Accepts both 120V and 240V AC. Rated 100-240V AC, 50/60Hz, 0.4A.
• DC output: 12V DC, 1.0A.
• Wall plug: US-style two-flat-blade plug (Type A). Indoor use only; keep the adapter dry.

USA and Canada: Connect to a compatible standard wall outlet. Europe and other destinations: On a 100-240V AC, 50/60Hz supply, use a destination-compatible travel plug adapter if the outlet shape differs. Most continental European destinations need a suitable round-pin adapter; the UK and Ireland use Type G, and Australia and New Zealand use Type I. A voltage converter is not needed within the labeled input range. A travel plug adapter changes the plug fit only; it does not change voltage.

Check the label on your own power supply before use, as versions may differ. Keep the correct adapter with its receiver: the ERA-RXPG uses 5V DC; the ERA-DCRX and LRA-PLUG listed here supply 12V DC. Do not interchange adapters based only on plug fit. Replacement voltage, current capacity, connector size and polarity must match the receiver. These ratings apply to receiver power; electrical compatibility alone does not establish wireless approval in another country.

The ERA-DCRX receiver has four 12V DC outputs, one per zone. When triggered, the active output supplies 900 mA.
