ERA-PRDCR-STROBE: Wireless Motion Entry Alert Strobe Chime Kit

Advanced Wireless Motion Entry Alerts for Your Business

Safeguarding your warehouse, retail store or auto shop protects your assets, employees, and customers. The ERA-PRDCR-STROBE wireless motion entry alert strobe chime kit offers an advanced solution to monitor your premises effectively, even in challenging environments.

Long-Range Motion Detection for Comprehensive Coverage

The ERA-PRDCR-STROBE features a state-of-the-art PIR (passive infrared) motion sensor that detects movement up to 4,000 feet away. This extended range ensures that even the largest warehouses or most expansive retail spaces are fully protected, leaving no blind spots for potential intruders or unauthorized entry.

The sensor’s advanced technology distinguishes between normal environmental changes and genuine human movement, minimizing false alarms. Its adjustable sensitivity settings allow you to fine-tune the sensor to suit your specific needs and environment.

Loud Chimes and Bright Strobe Lights

When the PIR sensor detects motion, it instantly triggers a loud chime and a bright LED strobe light, ensuring you’re immediately aware of any activity. With 12 customizable chime melodies, you can select the perfect sound to cut through background noise and grab attention in your unique setting.

The LED strobe light provides an additional layer of visual notification, making it ideal for noisy environments or those who may not always hear the chime. Adjust the strobe duration to suit your preferences, choosing from 5 seconds, 10 seconds, 1 minute, or 2 minutes for optimal visibility and alerting.

Expandable and Scalable Security System

As your business grows and your security needs evolve, the ERA-PRDCR-STROBE system can easily expand to keep pace. Each receiver can support up to 12 sensors, with a maximum of 3 sensors per zone. This means you can cover multiple entry points, zones, or even separate buildings with a single receiver.

Furthermore, you can pair an unlimited number of receivers with each sensor, allowing you to scale your security system to cover larger premises or multiple locations. This flexibility ensures that your investment in the ERA-PRDCR-STROBE can grow with your business, providing a future-proof solution for your security needs.

Integration with External Devices for Enhanced Security

The ERA-PRDCR-STROBE receiver features a live 12V DC output for each zone, allowing you to connect external devices for a more comprehensive security setup. Integrate sirens, pagers, or even fire alarms to create a multi-layered alert system that ensures maximum awareness and fast response times in case of an emergency.

User-Friendly Setup and Low Maintenance

Despite its advanced features, the ERA-PRDCR-STROBE is designed for easy installation and minimal maintenance. The sensor has a mounting bracket for quick and straightforward placement, while the receiver plugs into a standard wall outlet. Pairing the devices is a breeze, requiring no technical expertise. The sensor is typically mounted over the door or on the side of the door frame.

The sensor is powered by a 9V battery (not included), which provides long-lasting performance. A low battery indicator on the receiver alerts you when it’s time to replace the battery, ensuring your security system remains uninterrupted.

Reliable Performance and Peace of Mind

Safeguard Supply manufactures the ERA-PRDCR-STROBE, which is built to withstand the demands of commercial environments. The indoor-rated sensor and receiver are designed for reliable performance and long-term durability.

With a 1-year manufacturer’s warranty, you can trust your investment is protected. Experience the peace of mind that comes with knowing a high-quality, dependable motion entry alert system secures your business.

ERA-PRDCR-STROBE Key Features and Specifications

• PIR motion sensor with 4,000 feet detection range
• LED strobe light and 12 customizable chime melodies
• Adjustable strobe duration: 5s, 10s, 1min, 2min
• Supports up to 12 sensors per receiver (3 per zone)
• Unlimited receivers can be paired with each sensor
• Live 12V DC output for each zone to connect external devices
• 9V battery-powered sensor (battery not included)
• The low battery indicator on the receiver
• Easy installation and minimal maintenance
• Indoor-rated sensor and receiver
• 1-year manufacturer’s warranty by Safeguard Supply

Protect your business with the ERA-PRDCR-STROBE wireless motion entry alert strobe chime kit from Safeguard Supply. With its long-range detection, customizable alerts, and expandable design, this advanced security system is perfect for warehouses, retail stores, auto shops, and more. Upgrade your security today and enjoy the peace of mind of knowing your premises are safeguarded 24/7.

The sensor/transmitter can be easily mounted over the door using the aluminum bracket that comes with it. The bracket allows you to rotate and pivot the sensor, which can help you create a more refined monitoring zone. With this feature, you can adjust the sensor to focus on specific areas that require closer attention. This makes it an ideal tool for monitoring critical zones in industrial or commercial settings where precision is crucial.

In most situations, the sensor is mounted over the door. However, it can also be mounted horizontally on the side of the door. The sensor/transmitter’s user-friendly design ensures that anyone without technical expertise can install and operate it.

When triggered, the sensor will transmit a wireless signal up to 4,000 ft. to the plug-in receiver, the ERA-DCRX. The receiver has four zones, each playing 1 of 12 selected melodies. Up to 3 transmitters/sensors may be paired to a zone, and an unlimited number of receivers may be paired with a transmitter/receiver. The PIR in this kit detects motion, similar to the PIR in a driveway alarm kit, like the ERA-DSDCR. The difference is that the sensor in driveway kits is outdoor-rated and tends to shoot a narrower beam versus the ERA-PIR in this kit, which is indoor-rated and creates more of a canonical beam.

ERA-PRDCR-STROBE Warehouse & Business Motion Entry Alert Strobe Chime Kit Strobe Features:

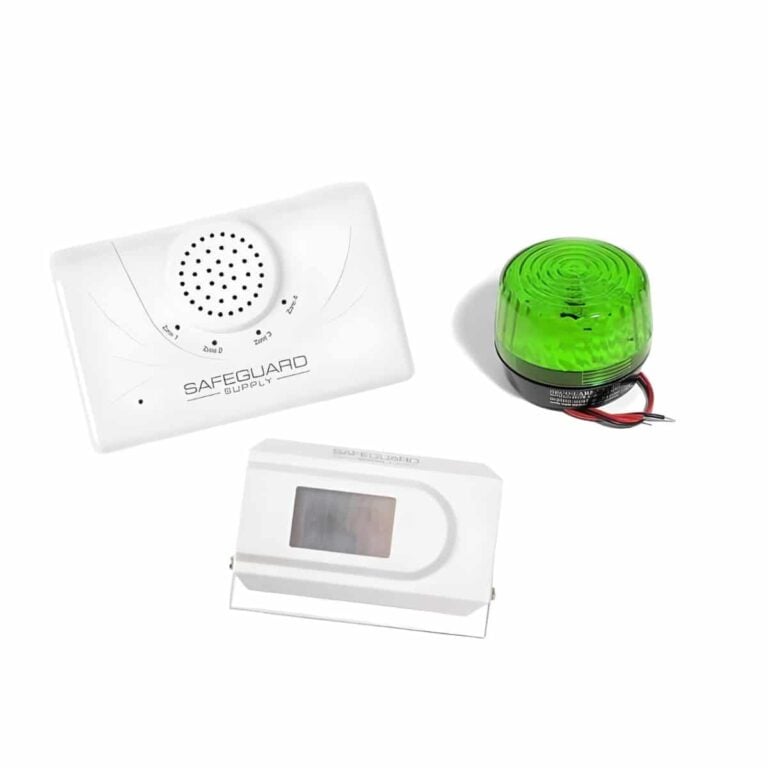

• Kit ships with 1 x ERA-PIR motion-activated sensor/transmitter, ERA-DCRX plug-in chime receiver, 15 ft. 2-strand 20 AWG wire, & LED strobe light (color choices available).
• Wireless range from the sensor/transmitter to receiver is up to 4,000 ft. line of sight. Environmental factors will diminish distance.
• PIR sensor/transmitter is indoor-rated only. The receiver is indoor-rated only.
• The PIR sensor/transmitter is powered by a 9V alkaline battery (not included).
• The receiver plugs into a standard wall outlet.
• The included strobe light (you choose the color) is LED & connects to the back of the receiver. Flashing duration is 5 sec (default), 10 sec, 1 min, & 2 minutes.
• Twelve different sensors/transmitters may be paired with each receiver. Other sensor types include this sensor (ERA-PIR) and ERA-UTX, which function as a push button or door/contact.
• An unlimited number of receivers, such as the ERA-DCRX, may be used.
• The receiver features four levels of volume control and a mute-off button.
• The transmitters are paired to one of four zones on the receiver. When triggered, a small LED indicator flashes on the receiver for each zone.
• Each zone features 1 x 12VDC output (for a total of 4). The receiver features a 1 x C-Form relay for integration with other devices.
• Low battery notice: when the battery in the transmitter is low, the zone indicator light it is paired to will blink for 10 minutes following a trigger & the melody plays two times in a row.
• 1-year manufacturer’s warranty.
• Manufactured by Safeguard Supply.

Product Dimensions:

• Receiver measures: 5.75” x 3.5” x 1”
• Sensor/ Transmitter size: 2.5” H x 4.55” W x 1.52 ” D.
• Strobe Light Dimensions are 3” x 3” x 1.75”

How to Wire Strobe Light (or other accessories) to ERA-DCRX Receiver

There are two methods for wiring external devices to the ERA receiver. The most common (image below) is to wire a 12V DC device to one of the 12V outputs. Each zone features 1 x 12V outputs.

The other uses a C-FORM relay. There is only one C-FORM relay, but it can be associated with a combination of all zones. Please note that the C-FORM relay acts as a switch. The third-party device must have a power supply.

How does the strobe light connect to the receiver?

---

Add Strobe Lights, Sirens, Fire Alarm Bells, and More.

On the back of the receiver are four connections (one per zone), each of which can output 12V DC of power to power an external device. Wire the strobe light to the zone to which the transmitter is paired. When triggered, the zone will output 12V of DC power for the selected duration (5 seconds, 10 seconds, 1 minute, or 2 minutes). This power will trigger the connected strobe light to flash for that period.

Each receiver zone has a 12V DC output, enabling four external devices to be powered/triggered by the receiver. A total of three transmitters/sensors may be paired to a respective zone, and there is no limit to the number of receivers a transmitter may be paired to.

Kit Includes One PIR Motion Detector / Sensor and One Plug-in Receiver

ERA-PIR Sensor/Transmitter

• Passive-Infrared (PIR) motion detector triggers when the combination of heat and movement passes through the monitored zone.
• The sensor is designed to be mounted over the doorway using the included bracket. The bracket design makes it easy to pivot the unit to create the desired monitored zone.
• The higher the unit is mounted, the wider the size of the monitored zone.
• A 9V battery powers the sensor/transmitter.
• The unit sends a signal to the included receiver up to 4000 ft. away.

---

ERA-DCRX Desktop/Wall Mount Receiver

• The receiver plugs into a standard wall outlet.
• Each receiver pairs with 12 transmitters/sensors; an unlimited number of receivers may pair with a transmitter.
• Each receiver features four zones…up to 3 transmitters per zone.
• Each zone features a live 12V DC output to trigger & power an external device.
• Volume control for chime sounds.
• Low battery on transmitter/sensor indicator.
