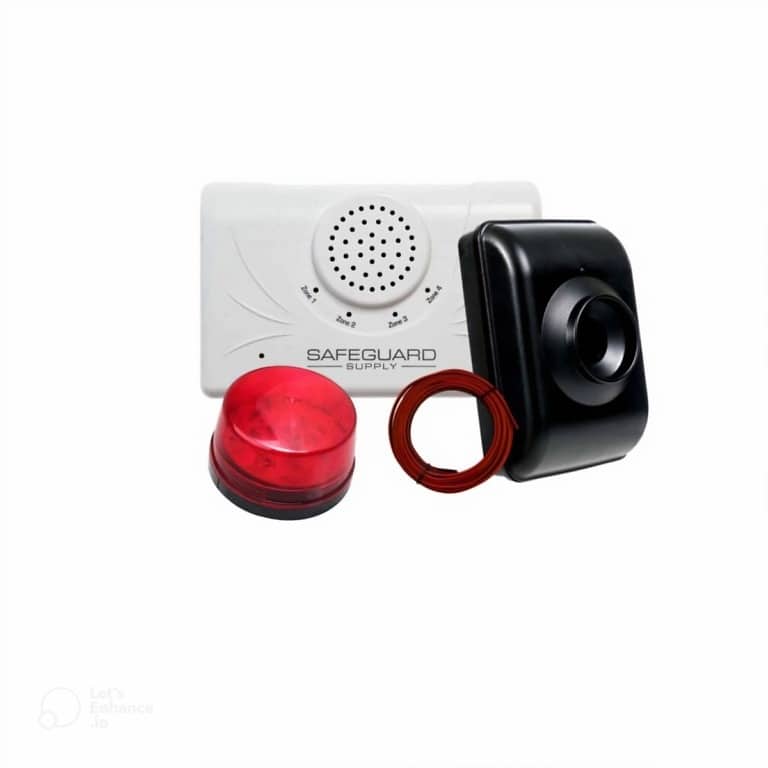

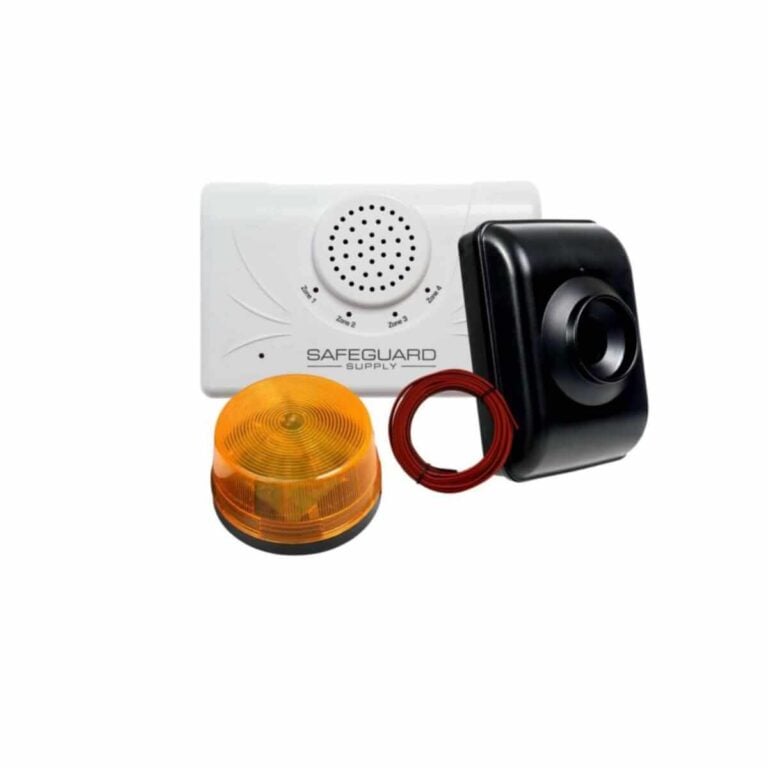

ERA-DSDCR-STROBE Wireless Driveway Monitor Kit with Bright Strobe

A Driveway Monitor Kit with a Motion Activated Outdoor Sensor and Long Range Receiver Featuring a Bright Flashing Strobe Light

The ERA-DSDCR by Safeguard Supply is a state-of-the-art driveway monitor kit with a long-range driveway motion sensor and a desktop (or wall-mounted) receiver. With a range of up to 4,000 ft. from the passive-infrared outdoor sensor to the receiver, you won’t miss another visit through your driveway or parking lot.

We have coupled the ERA-DSDCR with a bright strobe with your choice of color, so you now have a visual indicator to accompany the melody that plays when the sensor is triggered.

If you have a loud warehouse, shop, or garage, the flashing strobe light is a great way to add a visual indicator to an alert. Mounted on the wall, you’ll see the strobe flash for 5, 10 seconds, 1, or 2 minutes depending on the receiver’s setting, the ERA-DCRX. Like all products in the ERA series, you can add as many receivers such as the ERA-VRPX portable vibrating receiver, the ERA-RXPG plugin receiver with strobe, or an additional ERA-DCRX.

The receiver in this kit will work with up to 12 different ERA sensors, such as the ERA-PBTX push button, ERA-UTX door/window contact, and the ERA-PIR indoor motion sensor.

More About the ERA-DSTX Outdoor Driveway Motion Sensor

The outdoor motion sensor in this kit is the ERA-DSTX. It uses passive-infrared technology to instantly trigger when the combination of motion & heat are detected through the monitored zone. With various settings and long-range capability (4,000 ft.), you’ll never miss a visitor again.

Set up & mounting are easy. The sensor includes a mounting plate & swivel mount, enabling you to turn & adjust the sensor to maximize & fine-tune the monitored zone to meet your specifications. The sensor is powered by a 9V alkaline battery (not included) and is long-lasting. When the transmitter’s battery is low, the receiver will play the selected melody twice in a row.

ERA-DSTX Driveway Sensor/Transmitter Product Features

• Extended range – up to 4,000 ft. from the sensor to compatible receivers (ERA-DCRX and ERA-VPRX)
• Rated for outdoor and indoor use
• Powered by 9V alkaline battery (not included) – designed for low battery consumption – up to 12 months battery life
• Easily programs to ERA-DCRX desktop receiver and ERA-VPRX portable receiver with rechargeable batteries
• Mounts on an included swivel or wall plate
• Includes mounting bracket, swivel, and mounting screws
• Filter settings for indoor or outdoor use; this setting adjusts sensitivity
• The detection range can be adjusted to 25 ft., 50 ft., and 100 ft.
• The alarm reset interval is adjustable to 10 seconds between activation and 120 seconds between activation
• LED lights when transmitting (this can be turned off)
• The operating frequency is 433 MHZ
• Operational temperature from -30 F to 120F
• Dimensions are 4.5”H x 3.0”W x 2.25” D
• 1-year manufacturer’s warranty
• Manufactured by Safeguard Supply

Available Settings of Motion Driveway Sensor

• Range: three settings of low, medium, & high set the monitored zone size of the sensor from 25 ft. to 100 ft.
• LED: Off/On. When set to on, a small red LED will light for 2 seconds when transmitting to the receiver.
• Filter: This adjusts the sensitivity of the sensor. OFF for indoor use, ON for outdoor use.
• Rest: This will set the minimum reset interval between alarm activations, 120 seconds to 10 seconds.

More About the ERA-DCRX Desktop Receiver

The receiver featured in this kit is the ERA-DCRX desktop or wall-mounted receiver. Please note; all ERA sensors/transmitters are compatible with all ERA receivers, such as the ERA-RXPG plugin receiver & ERA-VPRX portable vibrating receiver. You can add as many additional receivers as you want to expand this kit.

The receiver features four zones, with up to three sensors/transmitters programmed to one of the four zones. When triggered, the receiver will play 1 of the 12 melodies programmed on the receiver for that sensor. This ensures you can distinguish which sensor is triggered.

The receiver is indoor rated & includes a plugin transformer & it sits on a desktop or may be mounted on the wall. A volume control button allows you to adjust to four volume levels and includes a mute and off function. At the highest setting, the sound is approximately 85 dBA.

Specifications of the ERA-DCRX Desktop Receiver

More Info About the ERA-DCRX Doorbell for Business Chime Receiver

The ERA-DCRX Receiver:

The receiver is truly the “backbone” of the Safeguard Supply ERA series system. The receiver features a “C” relay to wire any normally open N/O or normally closed N/C device to the receiver.  This allows you to integrate the device into a variety of other products.

The receiver also features (4) 12V DC outputs to add your favorite accessories.   Do you need the chime sound to be louder?  Easy, hook an external speaker to the live 12VDC output.  Need a visual indicator?  No problem, wire an external strobe light to the live output.  The C relays and DC output can be activated for 5 seconds, 10 seconds, 1 minute, or 2 minutes.

The volume control on the receiver allows you to adjust the volume to suit your needs – including Mute and Off.

Receiver Top Features

• Four zones, each zone capable of pairing with four transmitters
• Each zone features a live 12V DC output to connect to external 12V devices such as a strobe, siren, and horn.
• The receiver plugs into a standard wall outlet.
• Twelve available melodies to choose from.  A typical installation is one melody assigned per zone.
• No limit to the number of receivers you may pair to a transmitter
• Range from the transmitter is up to 4,000 ft.
• Volume control allows four (4) volume settings, mute, and on/off of the unit
• 1 x C-Form relay available to use with any configuration of zones

Example of How to Wire the Strobe to the Receiver

Hear Available ERA-DCRX Sound Options
