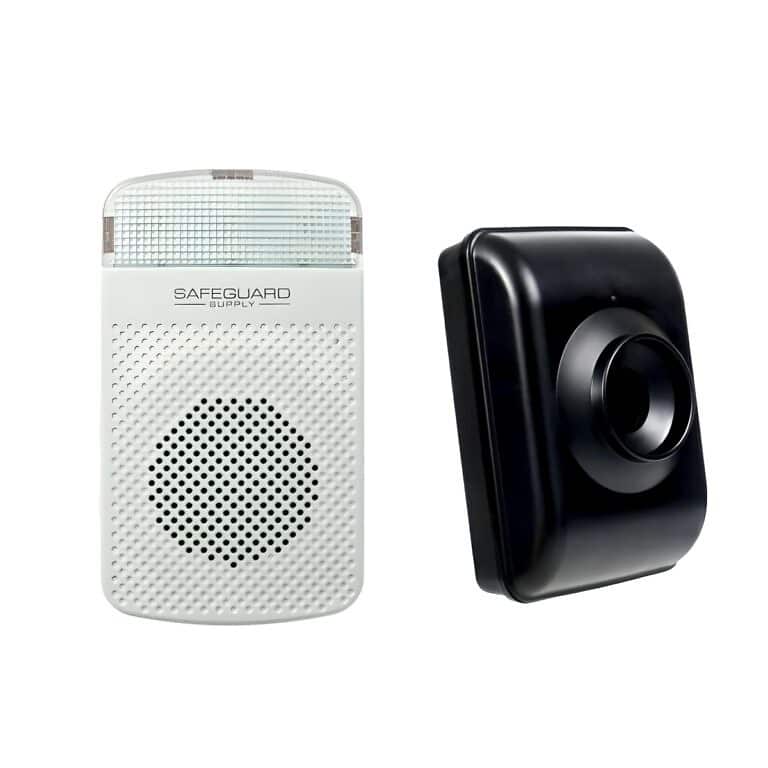

ERA-DSRXPG Long Range Driveway Alarm Monitoring Kit with A Plugin Receiver

Need  A Long Range Driveway Monitoring Kit with a Plugin Receiver?

The ERA-DSRXPG Driveway Alarm kit is one of the newest & most state-of-the-art monitoring kits on the market today.  Not only does this kit feature an outdoor-rated PIR sensor, but it will also transmit the signal to a plugin receiver up to 4,000 ft.  Whenever motion is detected, the outdoor sensor is triggered, and instantly a radio signal is sent to the receiver, which will play a programmed tune/melody.

This kit ships with one transmitter/sensor (ERA-DSTX) and one plugin receiver (ERA-RXPG) and may be expanded by adding additional ERA-RXPG receivers throughout your home or office, the ERA-DCRX desktop receiver, or the ERA-VPRX portable receiver with rechargeable batteries & charger.

In addition to adding more receivers, additional sensors such as the ERA-DSTX driveway sensor, the ERA-PBTX push button, the ERA-UTX universal transmitter/magnetic door contact, or the ERA-PIR indoor motion sensor on a swivel mount.

Real-World Application for a Long Range Driveway Monitoring Kit with a Plugin Receiver for Business Use

Because it’s a driveway alarm, people often think of this kit as a great driveway alerting system–they want to know when someone enters their driveway.  The product is excellent for that, but there are other applications.  1800doorbell.com has a large warehouse where many shipments come in and go out daily.  We have added two different ERA-DSTX driveway sensors at our facility.  One is attached to a post in the parking lot; the other is in front of the rear loading dock.  When a postal service, FedEx, or UPS delivery approaches and passes through the sensor, the various plugin receivers (ERA-RXPG) are triggered.  In my office, I have the sound off & the flashing strobe turned on.  In addition, we have a push button on the front door and a magnetic sensor on the warehouse door.  We are always aware when a visitor arrives!

The ERA-DSTX Driveway Alarm Outdoor Sensor

• Extended range – up to 4,000 ft. from the sensor to compatible receivers (ERA-DCRX and ERA-VPRX)
• Rated for outdoor and indoor use
• Powered by 9V alkaline battery (not included) – designed for low battery consumption – up to 12 months battery life
• Easily programs to ERA-DCRX desktop receiver and ERA-VPRX portable receiver with rechargeable batteries
• Mounts on an included swivel or wall plate
• Includes mounting bracket, swivel, and mounting screws
• Filter settings for indoor or outdoor use; this setting adjusts the sensitivity
• The detection range can be adjusted to 25 ft., 50 ft., and 100 ft.
• The alarm reset interval is adjustable to 10 seconds between activation and 120 seconds between activation
• LED lights when transmitting (this can be turned off)
• The operating frequency is 433 MHZ
• Operational temperature from -30 F to 120F
• Dimensions are 4.5”H x 3.0”W x 2.25” D
• 1-year manufacturer’s warranty
• Manufactured by Safeguard Supply

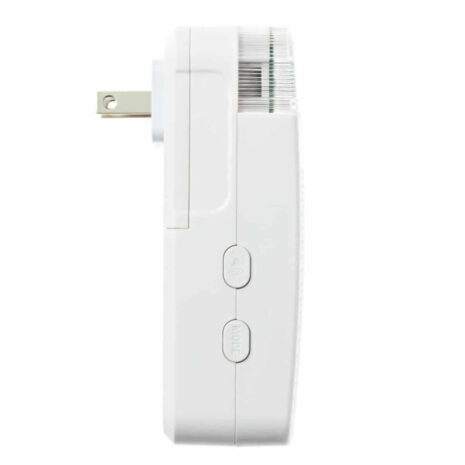

The ERA-RXPG Plugin Receiver

• The ERA-RXPG has an operating range of up to 4,000 ft.
• Works with all ERA transmitters/sensors: ERA-PIR: indoor motion sensor
• ERA-DSTX: outdoor motion sensor (ideal for driveway and entrances)
• ERA-UTX: Ruggedized, outdoor-rated push button and or magnetic door contact)
• ERA-PBTX: Outdoor-rated push button
• ERA-EXTX: wired doorbell extender- sends radio signal when the wired doorbell is triggered
• The ERA-RXPG has three modes of operation: Strobe only:  when triggered, the strobe will flash for approximately 15 seconds.
• Sound only: when triggered, the strobe will play the melody associated with the programmed sensor/transmitter.
• Sound and Strobe
• Up to 12 different transmitters/sensors may be programmed to each ERA-RXPG
• Four sound levels.  A fifth push of the volume button turns the receiver off.  Push again to go to the highest sound level.

Hear the ERA-RXPG Sounds (click to hear)
