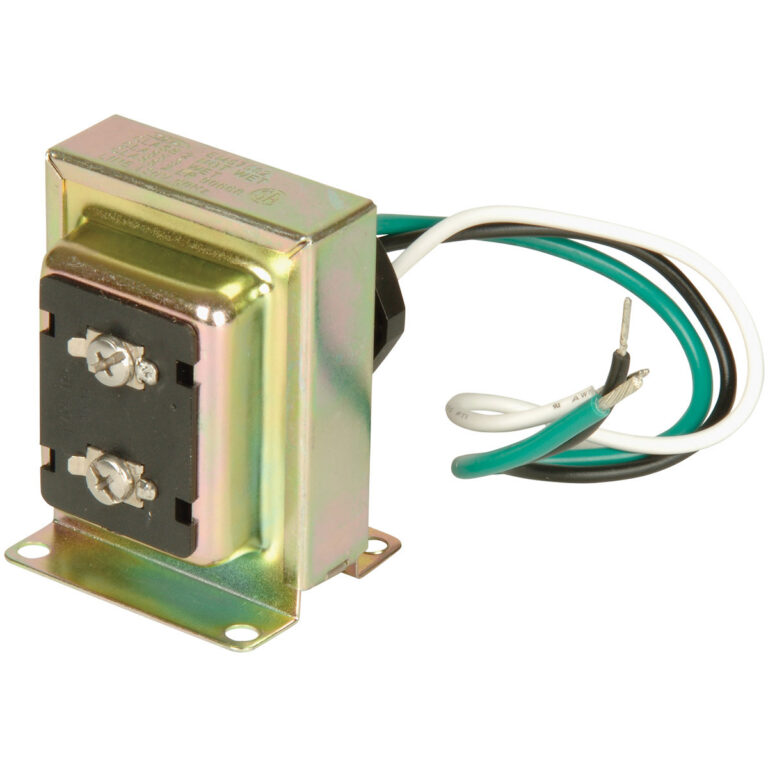

T1615 Craftmade 16V 15VA Wired Doorbell Transformer

Craftmade T1615 16V 15VA Doorbell Transformer for Long Wire Runs and Two-Chime Homes

The Craftmade T1615 is a 16-volt, 15VA (15-watt) chime transformer that steps standard 120V household current down to the low voltage a wired doorbell needs. It looks almost identical to the popular Craftmade T1610, mounts the same way, and delivers the same 16 volts. The difference is the power behind it: 15VA instead of 10VA. That extra 50% of capacity is what keeps a chime ringing strong when the wire run is long, when a second chime is added, or when lighted push buttons are drawing power around the clock.

T1615 vs. T1610: Why Choose the 15VA Transformer?

The Craftmade T1610 16V 10VA transformer is the most common replacement we sell, and for a single chime with a short wire run and an unlit button, it is all you need. Voltage tells you how hard the transformer pushes; the VA rating tells you how much total load it can carry before the output starts to sag. A 10VA transformer has very little headroom. Once you ask it to do more than ring one chime a short distance away, the voltage at the chime drops and the plungers strike weakly, buzz, or do not ring at all.

Choose the T1615 over the T1610 when any of the following apply:

• Long wire runs (over 50 feet): Thin 18- or 20-gauge doorbell wire loses voltage over distance. The T1610 is recommended for runs up to about 50 feet; the T1615 has the reserve to overcome that loss on longer runs, common in larger homes, basements, and detached garages.
• Two chimes on one system: Adding a second chime upstairs or at the back of the house roughly doubles the load when the button is pressed. Craftmade specifies the T1615 for dual-chime applications, making it the right match for kits like the CK2002 Craftmade two-chime doorbell kit.
• Lighted push buttons: Every lighted button, such as the PB5005 Craftmade lighted push button, draws a small current 24 hours a day. Two lighted buttons on a 10VA transformer leave very little left over for the chime itself.
• Weak, buzzing, or inconsistent rings: If your current chime sounds tired even though the wiring checks out, an undersized transformer is a common cause. Stepping up to 15VA often restores a crisp, full tone.

Because the T1615 operates further below its maximum rating than a 10VA unit doing the same job, it also runs cooler, which is easier on the transformer over years of continuous service.

Wired Doorbells That Pair Well with the T1615

The T1615 works with any 16V wired door chime. It is a strong choice for larger, louder, or more feature-rich chimes, including:

• CL4000 Craftmade curved loud wired door chime, built to be heard throughout a large home.
• CTPW Craftmade wired chime with pewter tubes, a resonant tube chime that rewards steady, full-strength power.
• ICH1735 Craftmade LED-illuminated chime, a lighted chime with added load from its LEDs.
• CK2000-W Craftmade door chime kit with two buttons, for front and back door setups.
• CH1000 Craftmade narrow-profile wired doorbell, a simple chime that gains extra reliability on long runs.

Browse our full selection of wired doorbells and chimes to find a style that matches your home.

When You Need More Than 15VA

The T1615 is sized for one chime on a long run or two chimes. If you are powering three chimes, several lighted buttons on a very long run, or a video doorbell, step up to the Craftmade T1630 16V 30VA transformer. Most video doorbells call for 30VA or more, so always confirm the requirement from your video doorbell's manufacturer before choosing a transformer.

Installation Overview

The T1615 is indoor (dry location) rated and mounts to an electrical junction box, typically near your electrical panel, furnace, or the existing transformer location. The 120V primary leads connect to household power, and the low-voltage screw terminals connect to your doorbell wire. Because the T1615 shares the same 16V output as the T1610, it is a direct upgrade: no changes are needed at the chime or buttons. Always turn off power at the breaker before working on the line-voltage side, and consult a licensed electrician if you are not comfortable working with 120V wiring.

T1615 Product Specifications

• Model: Craftmade T1615
• Input Voltage: 120V, 60Hz
• Output Voltage: 16V AC
• Power Rating: 15VA (15 watts)
• Best For: One chime on long wire runs, or two chimes
• Dimensions: 2.25" W x 1.9" H
• Weight: 0.75 lb
• Location Rating: Indoor / dry location
• Certification: CSAus approved
• Warranty: 1-year limited
• UPC: 647881078638

Quick Sizing Guide

• T1610 (10VA): One chime, wire run under 50 feet, unlit or one lighted button.
• T1615 (15VA): One chime on a run over 50 feet, two chimes, or multiple lighted buttons.
• T1630 (30VA): Up to three chimes, heavy lighted-button loads, or video doorbells that call for 30VA.

Order the Craftmade T1615 today for a stronger, more reliable wired doorbell. Need help choosing? Contact our team for sizing advice or volume pricing.
