★★★★★Sean M.Aug 26, 2022
Found the perfect doorbell for our remodel. It was easy and fast.
Button Specs
Measurements and mounting details
| Length | 2-3/4" |
|---|---|
| Width | 2-3/4" |
| Depth | 13/16" |
| Shape | Round |
| Mounting Style | Surface |
| Hole Distance | 1-13/16" |

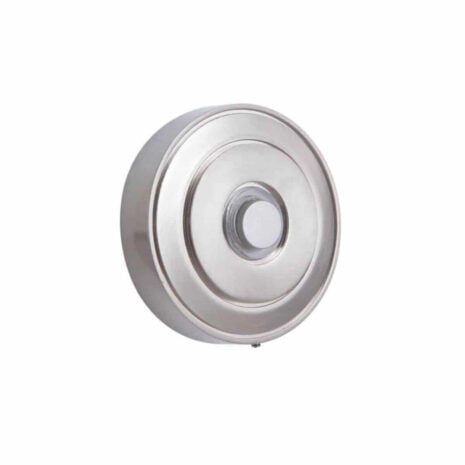

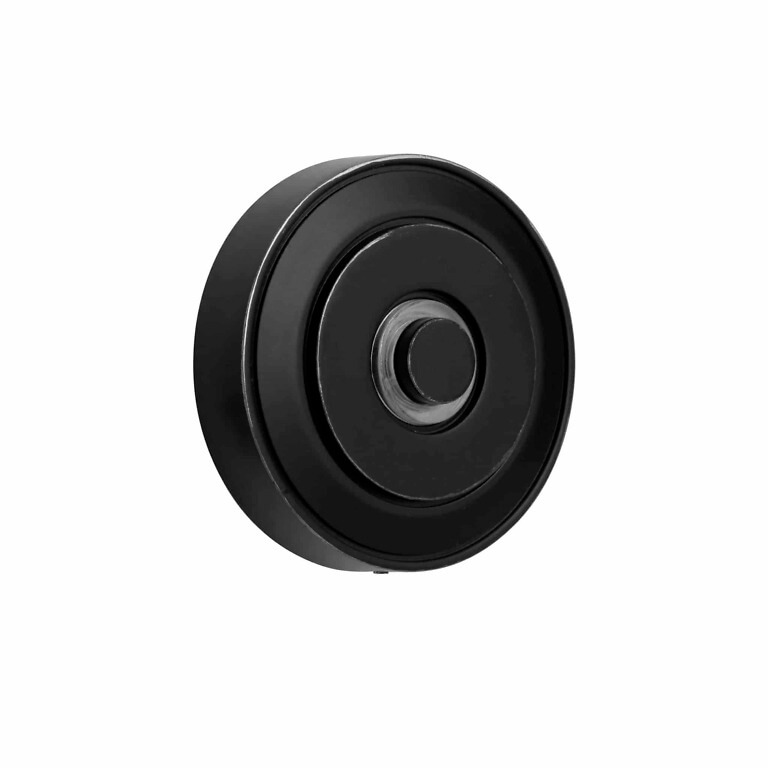

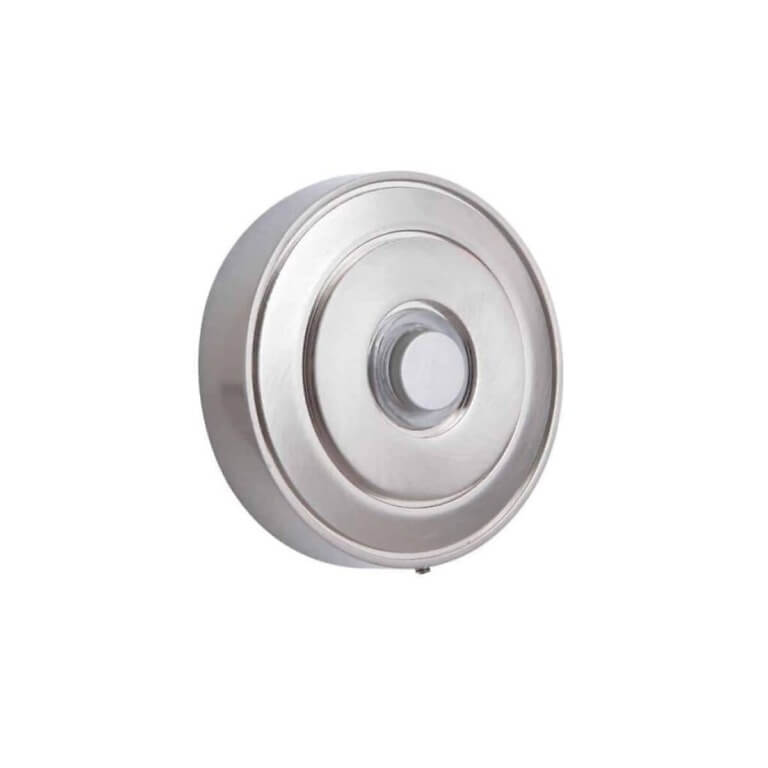

PB5003 CraftmadeCircular Push Button - Surface Mounted-3 Colors
$24.95
The PB5003 Craftmade Circular Surface Mounted Lighted Push Button is an adaptable and fashionable doorbell add-on. It comes in three color options, allowing homeowners to coordinate with their home’s aesthetic. This product boasts a lighted push button for easy visibility, even in dim lighting. Its surface-mounted setup eliminates the need for complicated drilling, simplifying installation. The modern circular design enhances any home entryway. Solid, metal design.
Safe checkout
Encrypted checkout with trusted payment processing
Secure SSL
Low Flat Rate Domestic ShippingExpedited & International ShippingSafe & Secure Checkout30-Day Satisfaction GuaranteeReal Customer SupportQuestions? 800-366-7235
Accessories & Add-Ons
Expand or complete your system with compatible components.
T1610 Craftmade 16V 10VA Wired Doorbell Transformer
T1610
The T1610 Craftmade doorbell transformer provides steady 16V power output for wired doorbell systems. Built with durable cast aluminum construction, this 10VA transformer supports single-chime applications within a 50-foot range. The professional-grade design includes 18-gauge wiring and maintains consistent voltage for dependable operation.
$22.95
ICH1735 Craftmade Rectangular Shaped Chime-Tinted Glass Lighted by LEDs
ICH1735
This indoor/outdoor chime from Craftmade’s Illuminated Collection will add style and sophistication to any decor. The Oiled Bronze or Brushed Nickel finish combined with the soft glow from the LED light makes a polished statement. 16 volt chime that plays 2 notes on the front door and one note on a secondary door.
$109.95
0 items selected · Total: $0.00
Buying notes
Is this the right fit?
- Good fit when
- Use this when the existing wired doorbell system works and you are replacing the outside button for fit, finish, lighting, or weather exposure.
- Look at another option when
- The chime does not ring even with the old button's two wires touched together. That points to the transformer or the chime, not the button. If you want a lighted button, check that the existing chime is the mechanical type most lighted buttons need.
- Mounting and fit
- This button is listed as concealed mount. Surface-mount buttons sit on top of the trim or siding with the wires through a small hole behind them. Flush or recessed buttons drop into a cutout so the faceplate sits closer to the wall. Compare the mounting style, faceplate size, and screw spacing with the old button so the new one covers the old footprint and lines up with the existing holes.
- Setup note
- Turn off power to the low-voltage circuit, note which wire went to which terminal on the old button, then move the two wires to the new button's screw terminals and mount it with the included screws.
Craftmade's chic, rounded push button is the perfect accessory to enhance the look of any entryway. This piece is not just a push button; it's a flawless blend of functionality and style. The elegant round shape gives it a modern and minimalistic charm that instantly elevates the aesthetic appeal of your space.
The LED halo light surrounding the solid center push button provides just the right amount of illumination. The soft glow of the LED bulb adds a subtle touch of elegance, enhancing the overall appearance of your entryway, even in the dark. This feature not only adds to the functionality of the push button but also creates a warm, inviting ambiance for your guests.
This lighted push button is a proud offering from Craftmade's Concealed Mounting collection. This collection is known for its high-quality pieces that exude sophistication and finesse, and this push button is no exception. It results from Craftmade's impeccable artistry, a testament to their commitment to delivering premium products.
The push button is also available in three finishes, allowing you to choose the one that best complements your existing decor. With its exceptional design and superior performance, this push button promises to delight you and your guests for years.
Craftmade's chic, rounded push button with an LED halo light is more than just a functional accessory. It is a statement piece that adds a flawless touch to any entryway, showcasing your refined taste and attention to detail. This push button from Craftmade's Concealed Mounting collection will impress with its superior design, stunning aesthetics, and long-lasting performance.
- Wired Push Button
- LED Halo light around the center push button
- Three finishes: Flat Black, Brushed Polished Nickel & Antique Bronze
- Surface Mount
- One year warranty
- Manufactured by Craftmade
- Hole Spacing - 1 3/4 inches
Specifications
| Product Dimensions | 2.75 inch Diameter .75 inch Depth |
|---|---|
| Condition | New |
| Country Of Origin | China |
| Brand | Craftmade |
| Finish | Aged Brass, Brushed Nickel, Flat Black |
| Button Mount Style | Concealed, Surface |
| Warranty | 1 Year |
| Door Count | Single-Door |
Reviews
4.80
★★★★★
4 verified reviews
★★★★☆Silvia H.Aug 14, 2022
The doorbell is very much as described. The material quality is good. I envisioned the lighting of the doorbell to only show up when it is dark, but in our entry, it is shaded, so the light shows all the time, and it has a bit of a yellowy tint. Goes well with new walllights and door handle set. Service was excellent and shipping time was as promised.
★★★★★Vickie C.Dec 28, 2020
Very chic. Looks modern. No more yellowed plastic button.
★★★★★MIKEAug 29, 2019
The doorbell is a quality piece of equipment. Solid construction and works well. The finish was perfect for the description and fits in well with existing door hardware.
Q&A
Questions & Answers
Answers from our team for PB5003 CraftmadeCircular Push Button - Surface Mounted-3 Colors.
How do I know if a wired push button will fit?
Check the mounting style, outside dimensions, and screw-hole spacing. Surface-mount buttons sit on the wall, while recessed or flush buttons need an opening that matches the button body.
Answered for Wired Buttons
Can I replace only the wired doorbell button?
Yes, if the chime and transformer still work. A wired push button is usually a separate low-voltage switch, so you can replace a worn or dated button without replacing the entire doorbell system.
Answered for Wired Buttons
Why does my lighted wired button stay on?
Most lighted wired buttons use a small lamp or LED that stays lit so the button is visible at night. If the chime buzzes, hums, or does not ring correctly, check transformer and chime compatibility.
Answered for Wired Buttons
Can two apartments share one doorbell button?
They can, but then both chimes ring for every visitor, or one chime rings and the other unit never hears the door. The better setup is one button per unit on a single plate, such as the BC203 or BC268, with each button wired to its own chime. Visitors press the button next to the name they want.
Answered for Wired Buttons
Do I need a separate transformer for each unit?
No. One doorbell transformer can run two or three mechanical chimes as long as its VA rating covers them. A 16V 10VA transformer is marginal for two chimes; a 15VA or 30VA unit gives headroom. If each unit already has its own transformer, keep them: each button on the station is an independent switch and simply goes in series with its own unit's circuit.
Answered for Wired Buttons
Which multi-door button works with an electronic chime?
The unlighted ones. The BC203 and BC208 have plain contacts with no lamp, so they work with mechanical and electronic chimes alike. Lighted buttons pass a small current through the chime all the time to run the lamp, which most electronic chimes do not tolerate, so use the lighted BC268 only with mechanical chimes.
Answered for Wired Buttons
Where do the name cards go?
Each multi-door station has a pocket or window under each button. On the BC203 and BC208 the pocket is an open metal slot that takes a strip of card stock or a printed label, and it covers the mounting screw head. On the BC268 the window is a clear lens with a white card behind it, held by a snap-in carrier on the back. Name cards are not printed for you; most people use a label maker or a printed strip.
Answered for Wired Buttons
Manuals & Resources
Product support documents
Download product manuals and preview sound libraries for installation, pairing, and troubleshooting.
Read the manual onlineCraftmade Two Note Door Chime Manual
Download the PDF resource for setup, product details, and support reference.
- Installation and setup steps for this product.
- Pairing, placement, and receiver or transmitter setup notes.
- Wiring, power, mounting, or accessory connection details.
