SaleButton Specs
Measurements and mounting details
| Length | 4-7/8" |
|---|---|
| Width | 11/16" |
| Depth | 7/16" |
| Shape | Rectangle |
| Mounting Style | Surface |
| Hole Distance | 3-5/8" |

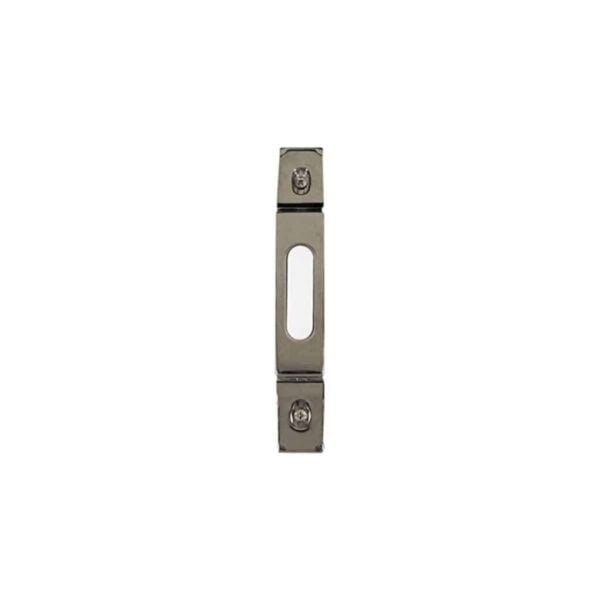

BS3 Craftmade Wired Doorbell Button - Slim Profile & Lighted
$18.95$20.95
BS3 is a slim, lighted wired doorbell button from Craftmade. It is a good option when you need a narrower button for tighter trim areas but still want an illuminated center and a more finished decorative look.
Safe checkout
Encrypted checkout with trusted payment processing
Secure SSL
Low Flat Rate Domestic ShippingExpedited & International ShippingSafe & Secure Checkout30-Day Satisfaction GuaranteeReal Customer SupportQuestions? 800-366-7235
Accessories & Add-Ons
Expand or complete your system with compatible components.
T1610 Craftmade 16V 10VA Wired Doorbell Transformer
T1610
The T1610 Craftmade doorbell transformer provides steady 16V power output for wired doorbell systems. Built with durable cast aluminum construction, this 10VA transformer supports single-chime applications within a 50-foot range. The professional-grade design includes 18-gauge wiring and maintains consistent voltage for dependable operation.
$22.95
CL4000-BN Craftmade Curved Loud Wired Door Chime
CL4000
CL4000 is a louder wired door chime from Craftmade with a curved cover and three finish options. It fits homes that want a stronger hardwired chime without stepping into a commercial-style buzzer or alarm device.
$47.95
0 items selected · Total: $0.00
Buying notes
Is this the right fit?
- Good fit when
- Use this when the existing wired doorbell system works and you are replacing the outside button for fit, finish, lighting, or weather exposure.
- Look at another option when
- The chime does not ring even with the old button's two wires touched together. That points to the transformer or the chime, not the button. If you want a lighted button, check that the existing chime is the mechanical type most lighted buttons need.
- Mounting and fit
- This button is listed as surface mount. Surface-mount buttons sit on top of the trim or siding with the wires through a small hole behind them. Flush or recessed buttons drop into a cutout so the faceplate sits closer to the wall. Compare the mounting style, faceplate size, and screw spacing with the old button so the new one covers the old footprint and lines up with the existing holes.
- Setup note
- Turn off power to the low-voltage circuit, note which wire went to which terminal on the old button, then move the two wires to the new button's screw terminals and mount it with the included screws.
The BS3 is designed for replacement situations where a wider button would feel oversized or crowded on the trim. Its slim surface-mount profile makes it especially useful on narrow door frames, brick molding, or side trim where there is not much extra room to work with.
This model is lighted by an LED and is intended for use with a 16V wired doorbell transformer. It is offered in Rustic Brick and Antique Pewter, which makes it easier to match either warmer traditional hardware or cooler gray-toned finishes around the entry.
Details to know
- Surface-mount wired doorbell button
- Slim profile design
- LED-lighted button
- Requires 16V wired doorbell transformer
- ADA compliant
- Finish options: Rustic Brick and Antique Pewter
- Dimensions: 4.93 inches H x 0.75 inch L x 0.75 inch W
- Approx. 3.75 inches between screw holes
- One-year manufacturer warranty
To compare other narrow or decorative buttons, browse wired doorbell buttons. If you are measuring a replacement, the wired push button measurements page is a useful next step.
Specifications
| Brand | Craftmade |
|---|---|
| Country Of Origin | China |
| Product Dimensions | 0.75L x 0.75W x H |
| Condition | New |
| Button Mount Style | Surface |
| Lighted Button | Lighted Button |
| Button Shape | Rectangular |
| Finish | Pewter, Rustic Brick |
| Warranty | 1 Year |
| Door Count | Single-Door |
Reviews
4.90
★★★★★
11 verified reviews
★★★★★Joe M.Mar 20, 2023
I ordered it on Thursday, and was in my mailbox by Monday. It came with clear instructions on how to get the doorbell button to stay lit.
★★★★★CustomerJun 20, 2022
I found the exact replacement doorbell that I needed and they shipped it quick!
★★★★★Gabe K.Dec 25, 2021
We have an older residence with a non standard type of door bell."1800" had an excellent match in terms of style and size. Nice to have an excellent on line source for "non smart" door bells!
★★★★★Elizabeth P.Oct 12, 2021
My new doorbell arrived quickly and fits perfectly - customer service was excellent.
★★★★★Clifford P.May 15, 2021
Just received 5/14/2021. I had to drill out holes a little deeper for the screws. Looks good. I will see if it lights up tonight.
★★★★☆David L.Jun 19, 2020
The service was great, but the light does not work on the doorbell, but at least the mounting holes line up.
★★★★★JOHN C.Jan 31, 2020
Happy with my new door bell and tithe way my order was done.
Q&A
Questions & Answers
Answers from our team for BS3 Craftmade Wired Doorbell Button - Slim Profile & Lighted.
Do you have any wired doorbell that has 4 3/4" between 2 screws ?
Good morning. The only push button that we have with 4 3/4' between the mounting screws would be the PB3037 but this push button has four mounting screws instead of two. I have included a link for our push button measurement page below. Thank you, Customer Support Team 1800Doorbell https://www.1800doorbell.com/wired-push-button-measurements/
Answered for Tam B.
Is it metal or plastic?
This is a metal push button.
Answered for Pittsburgh
Manuals & Resources
Product support documents
Download product manuals and preview sound libraries for installation, pairing, and troubleshooting.
Read the manual onlineCraftmade Two Note Door Chime Manual
Download the PDF resource for setup, product details, and support reference.
- Installation and setup steps for this product.
- Pairing, placement, and receiver or transmitter setup notes.
- Wiring, power, mounting, or accessory connection details.
