★★★★★KWMar 16, 2021
It's a doorbell button that lights up. It does exactly that.
Button Specs
Measurements and mounting details
| Length | 2.88" |
|---|---|
| Width | 1.13" |
| Depth | 0.38" |
| Shape | Rectangle |
| Mounting Style | Recessed |
| Hole Distance | 2-1/8" |
BR2-PW Craftmade Metal Rectangular Lighted Doorbell Button
$11.95
Introducing a high-quality metal doorbell pushbutton that comes with an LED light, available at an incredibly low price. This remarkable pushbutton is designed to provide exceptional performance and durability, with a choice of stunning pewter or bronze finishes to match any decor style.
Safe checkout
Encrypted checkout with trusted payment processing
Secure SSL
Low Flat Rate Domestic ShippingExpedited & International ShippingSafe & Secure Checkout30-Day Satisfaction GuaranteeReal Customer SupportQuestions? 800-366-7235
Accessories & Add-Ons
Expand or complete your system with compatible components.
T1610 Craftmade 16V 10VA Wired Doorbell Transformer
T1610
The T1610 Craftmade doorbell transformer provides steady 16V power output for wired doorbell systems. Built with durable cast aluminum construction, this 10VA transformer supports single-chime applications within a 50-foot range. The professional-grade design includes 18-gauge wiring and maintains consistent voltage for dependable operation.
$22.95
CH1000 Narrow Profile Wired Doorbell in Three Color Choices by Craftmade
CH1000
The Craftmade CH1000 is a narrow profile wired door chime for homeowners who want a cleaner, less bulky wall unit. Its slimmer cabinet and simple finish options make it easier to fit into updated entryways and tighter interior spaces.
$19.65
0 items selected · Total: $0.00
Buying notes
Is this the right fit?
- Good fit when
- Use this when the existing wired doorbell system works and you are replacing the outside button for fit, finish, lighting, or weather exposure.
- Look at another option when
- The chime does not ring even with the old button's two wires touched together. That points to the transformer or the chime, not the button. If you want a lighted button, check that the existing chime is the mechanical type most lighted buttons need.
- Mounting and fit
- This button is listed as recessed mount. Surface-mount buttons sit on top of the trim or siding with the wires through a small hole behind them. Flush or recessed buttons drop into a cutout so the faceplate sits closer to the wall. Compare the mounting style, faceplate size, and screw spacing with the old button so the new one covers the old footprint and lines up with the existing holes.
- Setup note
- Turn off power to the low-voltage circuit, note which wire went to which terminal on the old button, then move the two wires to the new button's screw terminals and mount it with the included screws.

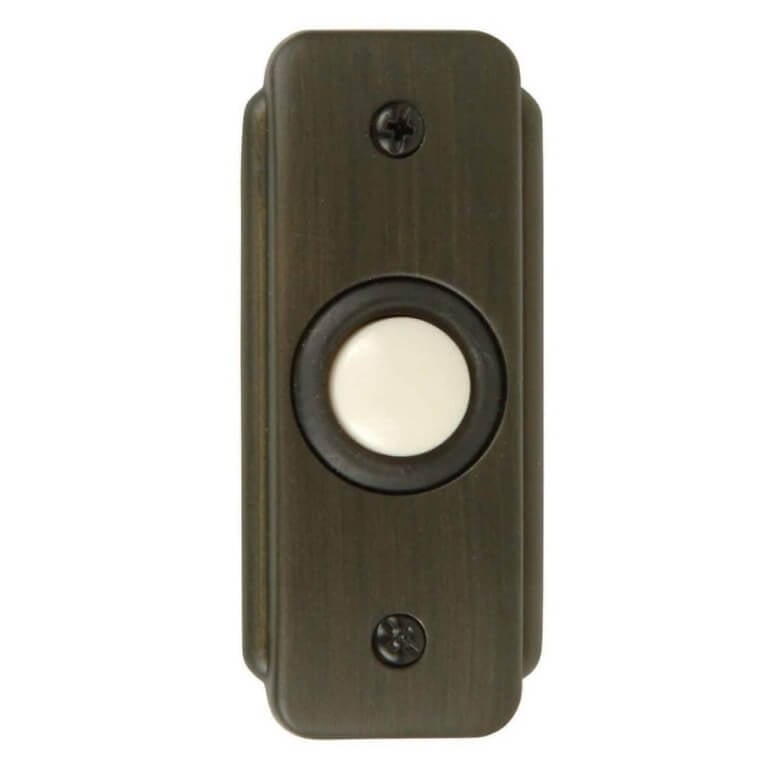

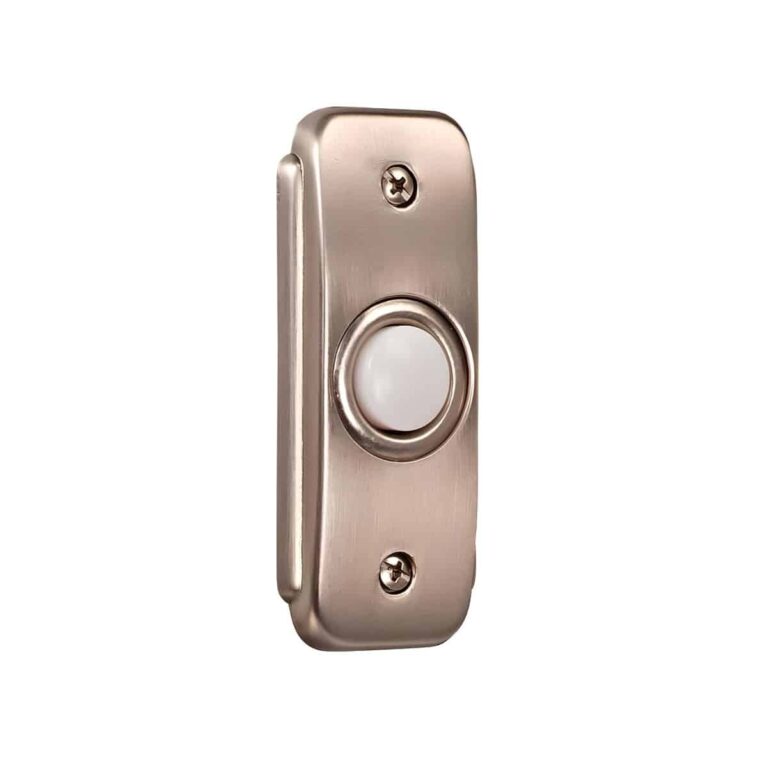

The Craftmade BR2 lighted wired doorbell button has a stepped rectangular design, with one rectangle sitting above another for a clean architectural look. It suits entries where a plain builder button feels too simple and a highly ornate plate would feel too traditional.
The Zinc button uses recessed mounting and an illuminated center. Check the existing opening, available mounting surface and wired-system compatibility before replacing an older push button.
Product specifications
- Product dimensions: 2.88 in length × 1.13 in width × 0.38 in depth
- Item weight: 0.04 lb
- Mounting style: Recessed
- Material: Zinc
- Bulb size included: Integrated LED
- Bulb count: 1
- Warranty: 1 Year Limited Warranty
- Country of origin: China
- Color temperature: 1800 K
- Color rendering index: 80
- Light power: 0.2 W
- Mounting location: Damp
Specifications
| Brand | Craftmade |
|---|---|
| Button Mount Style | Recessed |
| Button Shape | Rectangular |
| Condition | New |
| Country Of Origin | China |
| Finish | Bronze, Pewter |
| Lighted Button | Lighted Button |
| Product Dimensions | 2.88 in length × 1.13 in width × 0.38 in depth |
| Warranty | 1 Year |
| Door Count | Single-Door |
Reviews
5.00
★★★★★
1 verified review
Q&A
Product FAQs & Customer Q&A
Answers from our team for BR2-PW Craftmade Metal Rectangular Lighted Doorbell Button.
Does this have a diode so will work with chimes??
The Craftmade push buttons do not contain diodes and none of the Craftmade chimes will work with push buttons that do contain diodes.
Answered for null N.
Manuals & Resources
Product support documents
Download product manuals and preview sound libraries for installation, pairing, and troubleshooting.
Read the manual onlineCraftmade Two Note Door Chime Manual
Download the PDF resource for setup, product details, and support reference.
- Installation and setup steps for this product.
- Pairing, placement, and receiver or transmitter setup notes.
- Wiring, power, mounting, or accessory connection details.
