CK1003-W Craftmade Contractor Basic Wired Doorbell Kit
Safe checkout
Encrypted checkout with trusted payment processing
Buying notes
Is this the right fit?
- Good fit when
- Use this when existing low-voltage doorbell wiring is in place and you want to replace the indoor chime, bell, or buzzer.
- Look at another option when
- It is not a wireless receiver and will not work by itself without a compatible transformer, button, and wiring.
- Mounting and fit
- Wired chimes mount to the wall over the wire opening, usually on two or three screws, with the cover hiding the wiring. Compare the cover size to the old chime so it hides any paint line or old holes, and make sure there is room to reach the front, trans, and rear terminals.
- Setup note
- Confirm the transformer output and wiring layout before replacing the chime. Label the existing wires before disconnecting the old unit.
The Craftmade CK1003-W is supplied in the White finish.

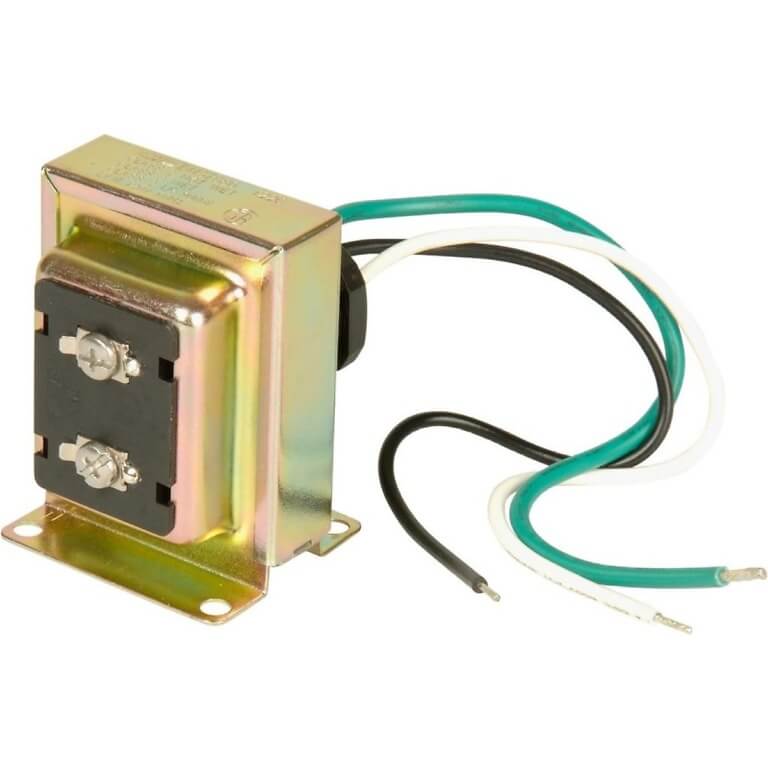

The Craftmade CK1003-W is the simple, practical end of the wired doorbell kit range. Instead of bundling extra buttons or multiple chimes, it gives you the essentials for a standard low-voltage installation: a CH1000-W wall chime, a BS6-W lighted wired button, and a T1610 16V 10VA transformer. That makes it a sensible choice for smaller homes, basic replacements, and contractor installs where one primary entry point is all that is needed.
The included transformer is suitable for a normal chime-and-button arrangement, but it is not the best fit if you plan to power both the wired chime and a video doorbell from the same small transformer. That distinction matters, and buyers often miss it when comparing kits. The main decision here is whether you want a simple one-button starter kit or a larger package with more doors, more chimes, or more decorative hardware.
Product specifications
- Product dimensions: Height: 2.16 in; Length: 5.51 in; Width: 7.79 in (manufacturer axes)
- Item weight: 2.62 lb
- Mounting style: Wall Mount
- Recommended bulb size: NA
- Warranty: 1 Year Limited Warranty
- Country of origin: China
- Location rating: Indoor Rated
- Finish: White
- Mounting location: Indoor
Specifications
| Brand | Craftmade |
|---|---|
| Chime Hanging Position | Horizontal/Vertical |
| Condition | New |
| Complete Kit | Kit |
| Finish | White |
| Warranty | 1 Year |
| Wired Doorbell Features | Multi-Door Capable |
Reviews
4.70
★★★★★
3 verified reviews
Tough to sort thru the website. But customer support was superb. Still awaiting delivery
Good quality arrived on time. Very pleased
Q&A
Product FAQs & Customer Q&A
Answers from our team for CK1003-W Craftmade Contractor Basic Wired Doorbell Kit.
Could you please send measurements?
Good morning. The chime in the CK2001 kit measures 8.25 (L) x 4.9 (H) x 2.59 (D). The push buttons measure 2 13/16 (L) x 27/32 (W) x 5/8 (D) with a hole spacing of 2 1/4. Thank you, Customer Support Team 1800Doorbell
