CK1000 Craftmade Stylish Wired Door Chime Kit (choose colors) & Two White Lighted Button
SaleCK1000 Craftmade Stylish Wired Door Chime Kit (choose colors) & Two White Lighted Button
$22.95$28.95
The Craftmade CK1000 is a wired door chime kit that bundles the core parts needed for a basic low-voltage setup: the wall chime, two lighted push buttons, and a 16V transformer. It is useful for new installs, light remodels, and straightforward replacements where you want the main pieces in one box.
Safe checkout
Encrypted checkout with trusted payment processing
Secure SSL
Low Flat Rate Domestic ShippingExpedited & International ShippingSafe & Secure Checkout30-Day Satisfaction GuaranteeReal Customer SupportQuestions? 800-366-7235
Buying notes
Is this the right fit?
- Good fit when
- Use this when the existing wired doorbell system works and you are replacing the outside button for fit, finish, lighting, or weather exposure.
- Look at another option when
- The chime does not ring even with the old button's two wires touched together. That points to the transformer or the chime, not the button. If you want a lighted button, check that the existing chime is the mechanical type most lighted buttons need.
- Mounting and fit
- Surface-mount buttons sit on top of the trim or siding with the wires through a small hole behind them. Flush or recessed buttons drop into a cutout so the faceplate sits closer to the wall. Compare the mounting style, faceplate size, and screw spacing with the old button so the new one covers the old footprint and lines up with the existing holes.
- Setup note
- Turn off power to the low-voltage circuit, note which wire went to which terminal on the old button, then move the two wires to the new button's screw terminals and mount it with the included screws.

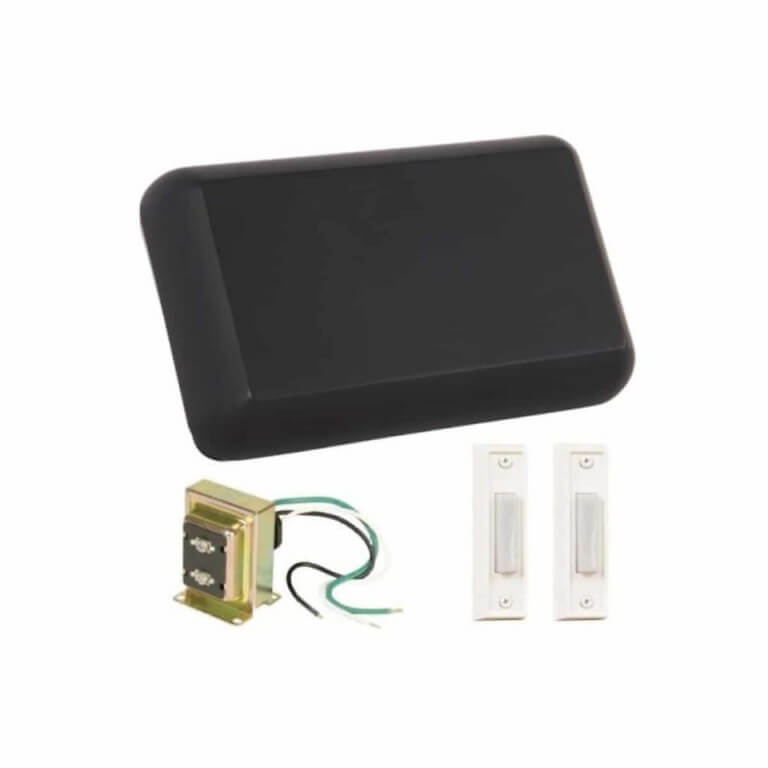

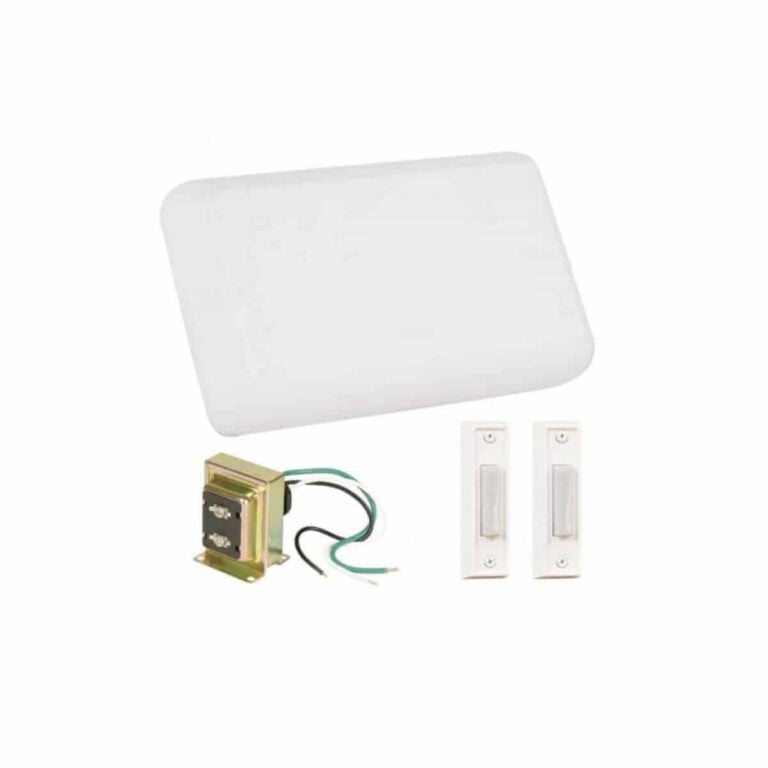

The CK1000 is built for buyers who do not want to piece together a wired doorbell system one part at a time. The kit includes a Craftmade wall chime, two white lighted push buttons, and a 16V 10VA transformer, which covers most of the hardware needed for a standard wired installation aside from field wiring. That makes it a sensible fit for contractors, remodelers, and homeowners replacing an older setup from scratch.
Because the included parts are already grouped together, the CK1000 can remove some of the guesswork around compatibility between the chime, transformer, and buttons. The chime cabinet is available in multiple finishes, and the two supplied buttons help when the install needs both a front and rear entry point. Buyers usually search for this type of product as a wired doorbell kit, Craftmade CK1000, or a door chime kit with transformer and buttons.
If you are still deciding between a full kit and individual replacement parts, compare it with the rest of our wired doorbells category. You can also review the and our transformer guide before ordering.
Specifications
| Brand | Craftmade |
|---|---|
| Finish | Brushed Nickel, Flat Black, White |
| Lighted Button | Non Lighted Button |
| Warranty | 1 Year |
| Complete Kit | Kit |
Reviews
5.00
★★★★★
3 verified reviews
★★★★★Joan P.Aug 11, 2023
In this day of wireless doorbells and big box stores, it is so hard to replace a wired doorbell. With a very strong recommendation from our electrician and exceptional customer service from Marilee C, at 1800 Doorbell! we were able to replace a broken UGLY doorbell chime with a sleak new white doorbell. THANK YOU 1800Doorbell and Marilee (and our electrician Sal)! PS - we did find that hanging it vertically seemed to have a softer tone than horizontally so our electrican switched to horizontally and we can now hear it even if we are in our basement.
★★★★★John I.Dec 25, 2021
Single tone quiet doorbell if you have a quiet environment that would be fine but this doorbell is not loud enough for a noisy house or even one with a TV or radio on
Q&A
Questions & Answers
Answers from our team for CK1000 Craftmade Stylish Wired Door Chime Kit (choose colors) & Two White Lighted Button.
Do you carry a mechanical chime that works with a SimpliSafe video doorbell? (It doesn't work with digital-sound chimes.)
This is a standard wired doorbell and it should work, but check with SimpliSafe first. The most common issue is the transformer — most are 10VA, so if you pair a wired chime with a video doorbell, make sure you have a 30VA doorbell transformer.
Answered for Jamie S.
Manuals & Resources
Product support documents
Download product manuals and preview sound libraries for installation, pairing, and troubleshooting.
Read the manual onlineCraftmade Two Note Door Chime Manual
Download the PDF resource for setup, product details, and support reference.
- Installation and setup steps for this product.
- Pairing, placement, and receiver or transmitter setup notes.
- Wiring, power, mounting, or accessory connection details.
