Wired Entrance Alert Kit Alerts You When Someone Enters Door…No Batteries Needed


The AV-200 is a hard-wired entrance alert kit for those who do not want to use a wireless notification system. Similar to the popular DA50L-A, this kit uses a passive infrared sensor (PIR) that triggers a chime alert when heat and movement are detected. Wired to the sensor is a speaker-chime-box that plays a chime sound when triggered. This kit has everything you need to install, operate, and maintain the system. Great for doors that remain open, or hallways.  Reliability and ease of installation make this a great product to improve customer service and increase safety.

SKU: AV-200 Categories: ,

More Info...

Download user manualGTIN: 635963264208

Low Flat Rate Domestic Shipping!

  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
  • online-amazon-payments
Accessories & Addons

Wired Entrance Alert Kit Alerts You When Someone Enters Door, the AV-200

The AV-200 is an easy-to-use Wired Entrance Alert Kit Alerts You When Someone Enters a Door specifically designed for convenience stores, retail stores & businesses that want to be notified of customers, but don’t want to change batteries.  This is because the AV-200 is a simple to install wired entry alert with a PIR (motion) based motion sensor that you mount over an area, which is usually on top of a door.  Then, when a visitor enters, the motion triggers the wired chime to play a gentle ding sound.

Improve customer service and be instantly alerted to customers, visitors, or deliveries, and never worry about changing batteries again.  Plugin the AV-200 hard-wired entrance alert system and start being alerted.  The AV-200 utilizes a PIR motion detector that picks up the heat & motion of people walking through your door and will sound either a ‘Ding’ or Ding-Dong’ (selectable) through a speaker (with volume control) that wires into the terminals located on the motion detector. The unit is a DC system that is powered by a plug-in transformer (included).

Av-2000 Wired Entrance Alert Kit Alerts You When Someone Enters Door
av200 entry alert receiver
av200 entry alert receiver
av200 Wired Entrance Alert Plugin

Can I Expand the AV-200 Kit?

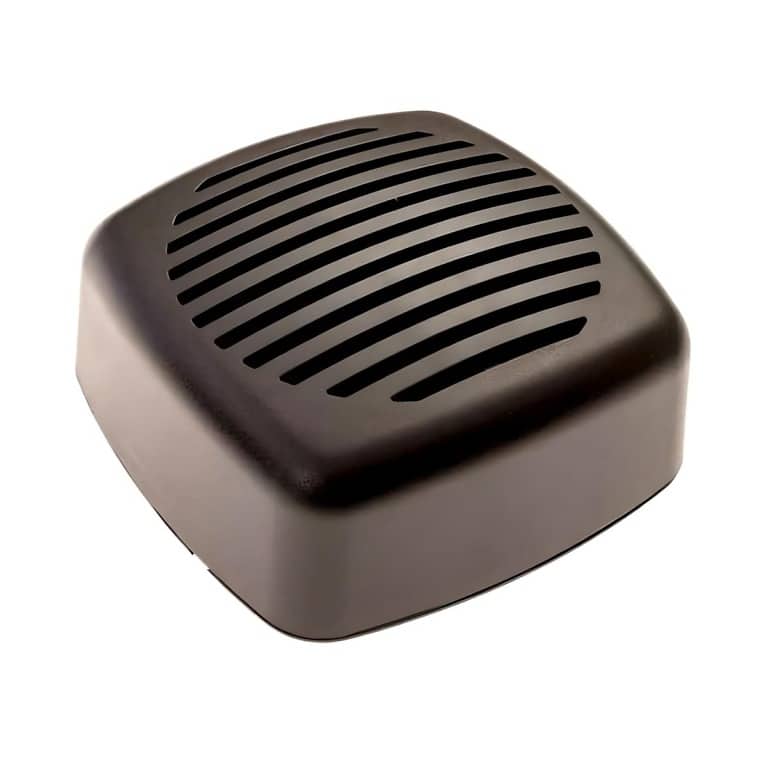

The kit comes with 50′ of double-strand wire that you will use to connect the sensor to the transformer and the speaker to the sensor.   For optimal performance, do not use more than 100 ft. of wire from the sensor to the speaker.  You can also purchase an add-on speaker below and connect this add-on speaker to the first speaker that comes in the kit.  When using 2 x speakers, it is recommended not to extend either connection (sensor to speaker 1 and speaker 1 to speaker 2) past 50 feet each.  This will ensure you receive a loud, quality rich sound.

  • No batteries to replace – completely wired system
  • Easy to self install uncomplicated wiring – no need to hire an electrician or contractor

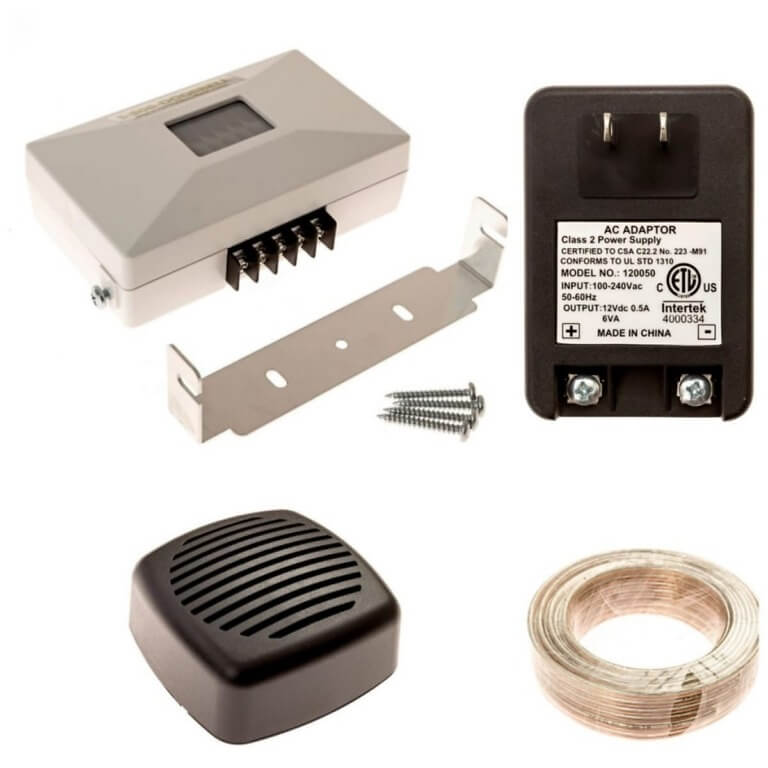

  • Complete Set Includes: 4 3/8″ X 2 7/8″

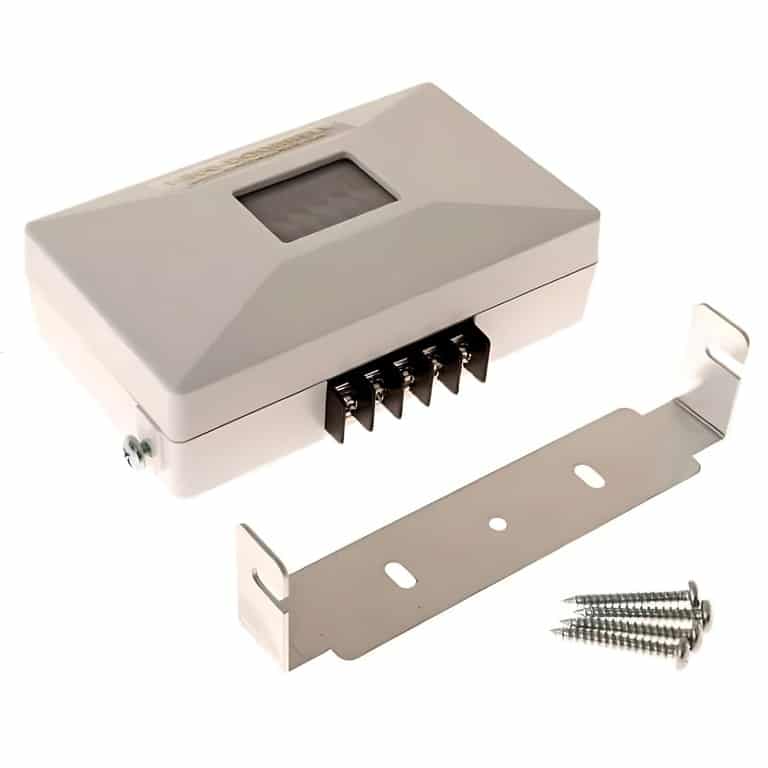

    • PIR Motion Detector
    • 1 Speaker 3 1/2″ X # 1/2″

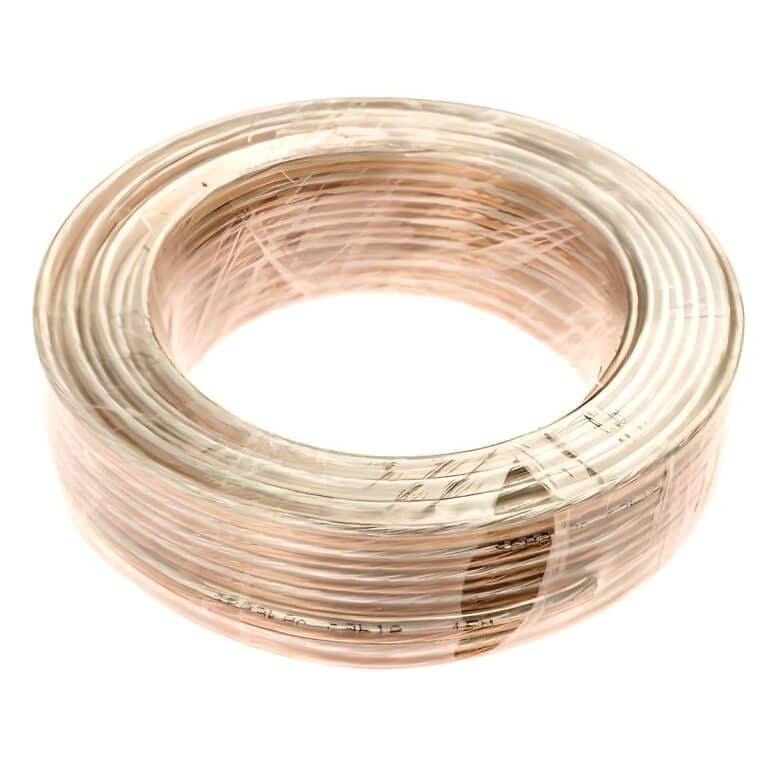

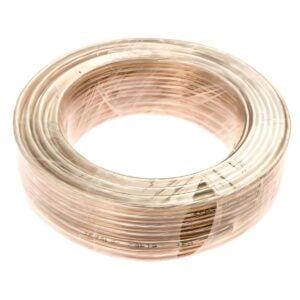

    • 50′ Wire

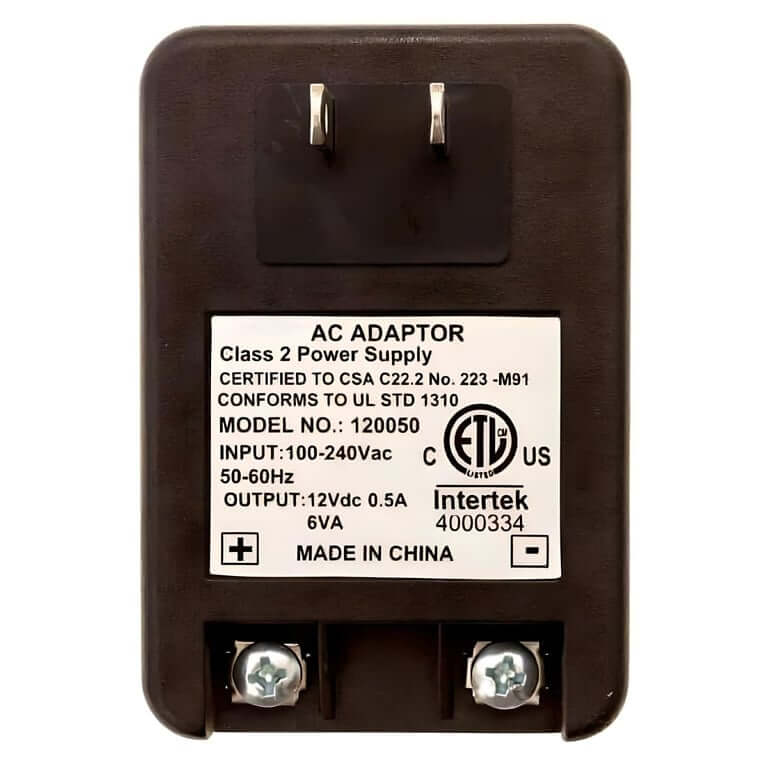

    • AC Power Adapter – Class 2 power supply, Input: 100-240Vac 50-60Hz Output: 12Vdc 0.5A 6VA ETL listed
  • Operates up to 2 speakers & a push-button/buzzer
  • Universal mounting bracket allows for easy ceiling, wall, or side mounting.
  • Fully automatic and maintenance-free (no reflectors or controls to align).
  • One year warranty against defects in material or workmanship.
  • Select from ‘ding’ or ‘ding-dong’
  • Prevents unannounced entry
  • Helps control theft
Weight 2.5 lbs
Dimensions 7 × 7 × 3.5 in

Rodann Electronics



Wireless Features

Volume Control

Wireless Range

Sound at Entry


1 Year

Battery Or Plug In

Plug-in Receiver

Kit Or Accessory
