★★★★★Robert B.Oct 28, 2024
I wanted a heavy duty brass doorbell, and that's just what I got. It installed easily and looks great.
Button Specs
Measurements and mounting details
| Length | 3-2/16" |
|---|---|
| Width | 1-5/16" |
| Depth | 1/2" |
| Shape | Rectangle |
| Mounting Style | Recessed |
| Hole Distance | 2-1/8'' |

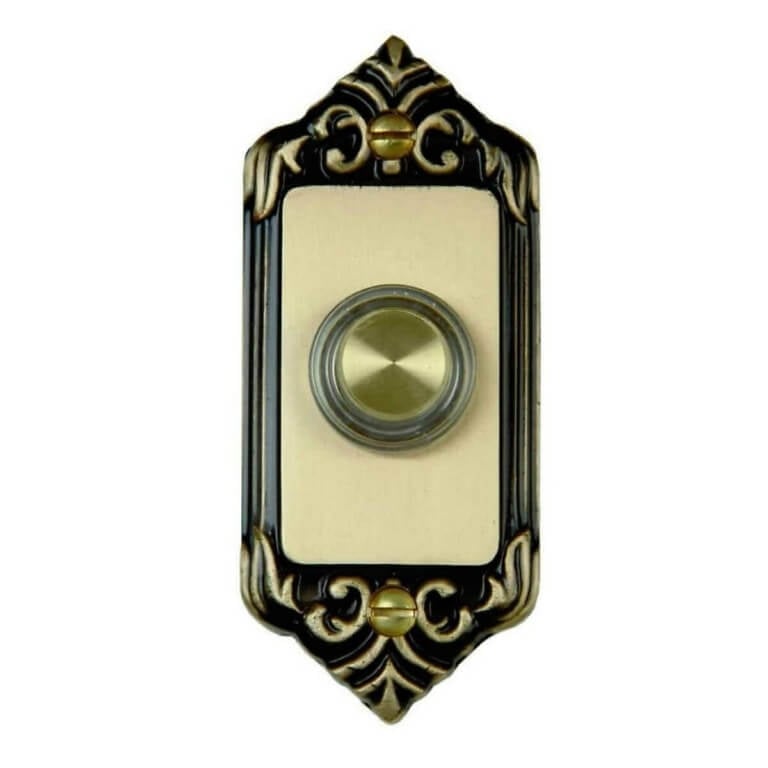

DH1665L Classic Aged Solid Brass Lighted Wired Push Button
$6.95
The DH1665L is a solid brass lighted doorbell button with an aged brass finish and a more decorative face than the usual builder-grade replacement. It is a wired button for homeowners who want a traditional metal look and a visible ring light after dark.
Safe checkout
Encrypted checkout with trusted payment processing
Secure SSL
Low Flat Rate Domestic ShippingExpedited & International ShippingSafe & Secure Checkout30-Day Satisfaction GuaranteeReal Customer SupportQuestions? 800-366-7235
Accessories & Add-Ons
Expand or complete your system with compatible components.
IQ America DT-1610A Wired Doorbell Transformer (16V / 10VA)
DT-1610A
Ensure your doorbell rings loud and clear with the IQ America DT-1610A. This reliable, hardwired transformer converts standard household power to a safe 16-volt supply, perfect for standard wired door chimes. Designed with a clamp-lock nut for secure mounting in metal or non-metallic electrical boxes, it is UL listed for safety and built for long-lasting performance.
$14.95
DH251, DH252, DH253 & DH257 Wired Doorbell - Use Batteries or Doorbell Transformer
DH250
The DH251 (aged brass), DH252 (white), DH253 (satin nickel) and DH257 (brushed bronze) are wired doorbell chimes that run on either four C batteries or a 16V transformer. They are useful when you want a wired-style indoor chime but do not yet have transformer power at the installation point.
$6.95
DH1665L Classic Aged Solid Brass Lighted Wired Push ButtonThis product
DH1665L
The DH1665L is a solid brass lighted doorbell button with an aged brass finish and a more decorative face than the usual builder-grade replacement. It is a wired button for homeowners who want a traditional metal look and a visible ring light after dark.
$6.95
1 item selected · Total: $6.95
Buying notes
Is this the right fit?
- Good fit when
- Use this when the existing wired doorbell system works and you are replacing the outside button for fit, finish, lighting, or weather exposure.
- Look at another option when
- The chime does not ring even with the old button's two wires touched together. That points to the transformer or the chime, not the button. If you want a lighted button, check that the existing chime is the mechanical type most lighted buttons need.
- Mounting and fit
- This button is listed as recessed mount. Surface-mount buttons sit on top of the trim or siding with the wires through a small hole behind them. Flush or recessed buttons drop into a cutout so the faceplate sits closer to the wall. Compare the mounting style, faceplate size, and screw spacing with the old button so the new one covers the old footprint and lines up with the existing holes.
- Setup note
- Turn off power to the low-voltage circuit, note which wire went to which terminal on the old button, then move the two wires to the new button's screw terminals and mount it with the included screws.
The DH1665L stands out because it feels like a real hardware piece rather than a throwaway trim part. The solid brass escutcheon, sculpted detailing, and aged finish give it a more established look that works well on brick, stone, and older-style entry doors. Around the center button, the illuminated rim helps visitors find the switch at night without turning the design into something overly modern.
This is a wired recessed-mount doorbell button, so it belongs on a low-voltage wired chime system rather than a wireless setup. Buyers usually compare this type of model when they want a brass lighted doorbell button, an aged brass wired push button, or a replacement that feels heavier and better made than the common plated options from the hardware aisle.
If you are checking fit before ordering, compare it against the rest of our wired buttons and review the measurement guide if the opening or screw spacing is in question. If your existing button has been dim or unreliable for a while, our doorbell transformer guide may also help with troubleshooting.
Specifications
| Brand | Carlon |
|---|---|
| Condition | New |
| Country Of Origin | China |
| Mounting Screw Distance | 2.12 |
| Product Dimensions | 1.5L x 0.75W x 3.25H |
| Button Mount Style | Recessed |
| Lighted Button | Lighted Button |
| Button Shape | Rectangular |
| Finish | Aged Brass |
| Warranty | 1 Year |
| Door Count | Single-Door |
Reviews
4.50
★★★★★
2 verified reviews
★★★★☆Gary S.Sep 15, 2018
I just hope it lasts being on the south side of the house in the sun. Our last one was a cheap plastic button didn't last one year. So the proof will in to see if it at least lasts 5 or more years. I never had to replace the one on my old house.
Q&A
Questions & Answers
Answers from our team for DH1665L Classic Aged Solid Brass Lighted Wired Push Button.
How do I know if a wired push button will fit?
Check the mounting style, outside dimensions, and screw-hole spacing. Surface-mount buttons sit on the wall, while recessed or flush buttons need an opening that matches the button body.
Answered for Wired Buttons
Can I replace only the wired doorbell button?
Yes, if the chime and transformer still work. A wired push button is usually a separate low-voltage switch, so you can replace a worn or dated button without replacing the entire doorbell system.
Answered for Wired Buttons
Why does my lighted wired button stay on?
Most lighted wired buttons use a small lamp or LED that stays lit so the button is visible at night. If the chime buzzes, hums, or does not ring correctly, check transformer and chime compatibility.
Answered for Wired Buttons
Can two apartments share one doorbell button?
They can, but then both chimes ring for every visitor, or one chime rings and the other unit never hears the door. The better setup is one button per unit on a single plate, such as the BC203 or BC268, with each button wired to its own chime. Visitors press the button next to the name they want.
Answered for Wired Buttons
Do I need a separate transformer for each unit?
No. One doorbell transformer can run two or three mechanical chimes as long as its VA rating covers them. A 16V 10VA transformer is marginal for two chimes; a 15VA or 30VA unit gives headroom. If each unit already has its own transformer, keep them: each button on the station is an independent switch and simply goes in series with its own unit's circuit.
Answered for Wired Buttons
Which multi-door button works with an electronic chime?
The unlighted ones. The BC203 and BC208 have plain contacts with no lamp, so they work with mechanical and electronic chimes alike. Lighted buttons pass a small current through the chime all the time to run the lamp, which most electronic chimes do not tolerate, so use the lighted BC268 only with mechanical chimes.
Answered for Wired Buttons
Where do the name cards go?
Each multi-door station has a pocket or window under each button. On the BC203 and BC208 the pocket is an open metal slot that takes a strip of card stock or a printed label, and it covers the mounting screw head. On the BC268 the window is a clear lens with a white card behind it, held by a snap-in carrier on the back. Name cards are not printed for you; most people use a label maker or a printed strip.
Answered for Wired Buttons
Manuals & Resources
Product support documents
Download product manuals and preview sound libraries for installation, pairing, and troubleshooting.
Read the manual onlineChime Installation Manual
Download the PDF resource for setup, product details, and support reference.
- Installation and setup steps for this product.
- Pairing, placement, and receiver or transmitter setup notes.
- Wiring, power, mounting, or accessory connection details.
Related support
Setup and compatibility help
How to Wire a Push Button to the ERA-UTX Universal Transmitter
Wire a non-lighted doorbell button or a wired door contact to the ERA-UTX universal transmitter: which terminals to use, how to pair and mount it, and why it helps range.
How to Install a Wired Doorbell
Get a plain-language answer to how to install a wired doorbell, with setup notes, compatibility details, and links to related help and product pages.
How to Replace a Wired Doorbell Push Button
Do you have an older wired doorbell button or simply want to replace a wired doorbell button with a new design? At first, it could seem a little overwhelming, but it’s a fairly straightforward process if have the right tools and the know-how. Please watch the short video below where our friend, Dennis Coffey demonstrates…
