Button Specs
| Mounting Style | Surface |
|---|
Safe checkout
Encrypted checkout with trusted payment processing
Expand or complete your system with compatible components.
DT-1610A
Ensure your doorbell rings loud and clear with the IQ America DT-1610A. This reliable, hardwired transformer converts standard household power to a safe 16-volt supply, perfect for standard wired door chimes. Designed with a clamp-lock nut for secure mounting in metal or non-metallic electrical boxes, it is UL listed for safety and built for long-lasting performance.
DH130
DH130 is a white wired door chime with a stepped crown-molding look on the cover. It is a solid option when you want a simple replacement chime that looks a little more finished than a plain flat box.

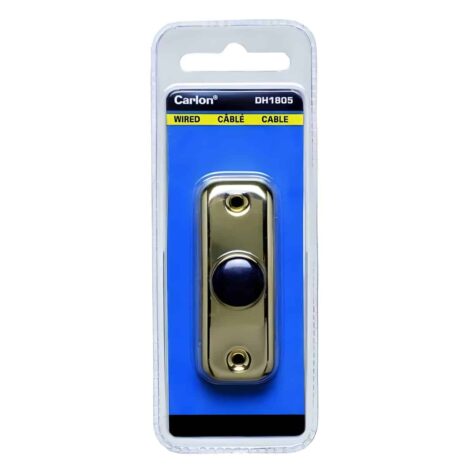

DH1805
DH1805 is a small, non-lighted wired doorbell button with a brass face and black center. It is a good replacement choice when you want a simple button that fits narrow trim areas without adding a decorative oversized plate.
1 item selected · Total: $6.95
Buying notes
The DH1805 is best suited to shoppers who want a small wired push button that keeps the look straightforward. The brass housing gives it a traditional finish, while the black center button provides clear contrast without drawing too much attention on the entry trim.
Because it is non-lighted, this model usually makes the most sense where the porch or entry area already has enough light, or where you want to avoid the extra draw of a lamped button. The compact body also helps in tighter replacement situations where a larger plate would overhang the trim or call attention to itself.
Details to know
To compare other sizes and finishes, browse wired doorbell buttons. If you are measuring a replacement, our wired push button measurements page can help narrow the fit before you order.
The DH1805 wired push button is a good choice when a small brass faceplate fits the entry better than a larger decorative button. Because it is non-lighted, this small brass doorbell button works best where porch lighting already makes the button easy to see.
| Brand | Carlon |
|---|---|
| Condition | New |
| Country Of Origin | China |
| Mounting Screw Distance | 1.75 |
| Product Dimensions | 2.25L x 0.75W x 4H |
| Button Mount Style | Surface |
| Lighted Button | Non Lighted Button |
| Button Shape | Rectangular |
| Finish | Brass |
| Warranty | 1 Year |
| Door Count | Single-Door |
No reviews yet for DH1805 Small Brass Wired Chime Button with Black Center.
Answers from our team for DH1805 Small Brass Wired Chime Button with Black Center.
Check the mounting style, outside dimensions, and screw-hole spacing. Surface-mount buttons sit on the wall, while recessed or flush buttons need an opening that matches the button body.
Answered for Wired Buttons
Yes, if the chime and transformer still work. A wired push button is usually a separate low-voltage switch, so you can replace a worn or dated button without replacing the entire doorbell system.
Answered for Wired Buttons
Most lighted wired buttons use a small lamp or LED that stays lit so the button is visible at night. If the chime buzzes, hums, or does not ring correctly, check transformer and chime compatibility.
Answered for Wired Buttons
They can, but then both chimes ring for every visitor, or one chime rings and the other unit never hears the door. The better setup is one button per unit on a single plate, such as the BC203 or BC268, with each button wired to its own chime. Visitors press the button next to the name they want.
Answered for Wired Buttons
No. One doorbell transformer can run two or three mechanical chimes as long as its VA rating covers them. A 16V 10VA transformer is marginal for two chimes; a 15VA or 30VA unit gives headroom. If each unit already has its own transformer, keep them: each button on the station is an independent switch and simply goes in series with its own unit's circuit.
Answered for Wired Buttons
The unlighted ones. The BC203 and BC208 have plain contacts with no lamp, so they work with mechanical and electronic chimes alike. Lighted buttons pass a small current through the chime all the time to run the lamp, which most electronic chimes do not tolerate, so use the lighted BC268 only with mechanical chimes.
Answered for Wired Buttons
Each multi-door station has a pocket or window under each button. On the BC203 and BC208 the pocket is an open metal slot that takes a strip of card stock or a printed label, and it covers the mounting screw head. On the BC268 the window is a clear lens with a white card behind it, held by a snap-in carrier on the back. Name cards are not printed for you; most people use a label maker or a printed strip.
Answered for Wired Buttons
