★★★★★Dave L.Jan 5, 2023
Simple doorbell that works great looks good, that I could not find at any store
Button Specs
Measurements and mounting details
| Length | 2-1/8" |
|---|---|
| Width | 7/8" |
| Depth | 5/8" |
| Shape | Rectangle |
| Mounting Style | Surface |
| Hole Distance | 1-11/16" |

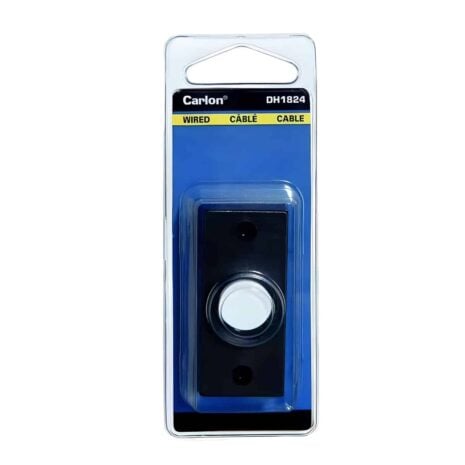

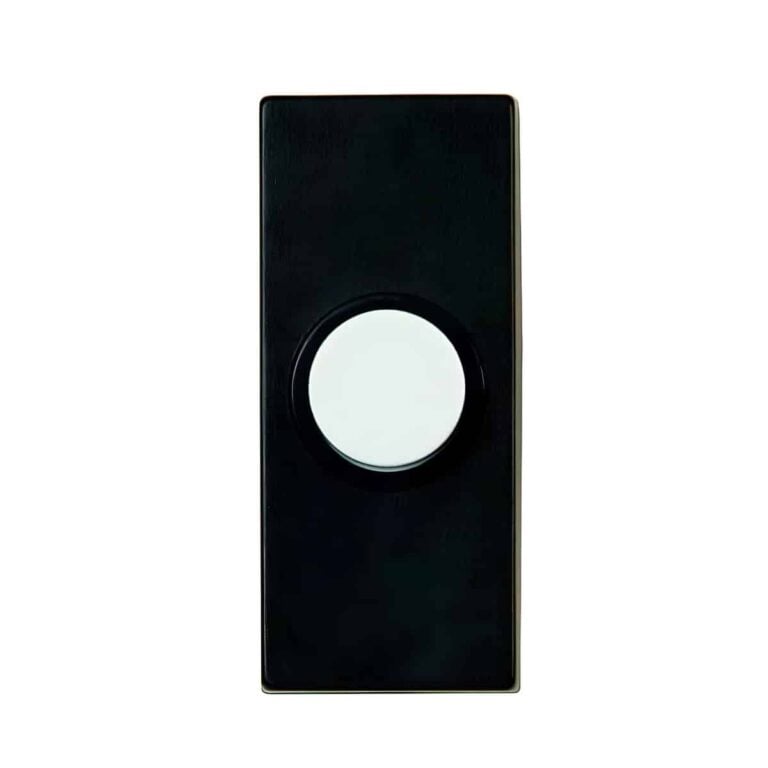

DH1824 Simple Black Chime Push Button with White Center
$6.95
This Thomas and Betts wired product boasts a unique design element – a black box push button with a white circular button at the center. Its striking appearance is matched by its unbeatable price, now available on sale.
Safe checkout
Encrypted checkout with trusted payment processing
Secure SSL
Low Flat Rate Domestic ShippingExpedited & International ShippingSafe & Secure Checkout30-Day Satisfaction GuaranteeReal Customer SupportQuestions? 800-366-7235
Accessories & Add-Ons
Expand or complete your system with compatible components.
IQ America DT-1610A Wired Doorbell Transformer (16V / 10VA)
DT-1610A
Ensure your doorbell rings loud and clear with the IQ America DT-1610A. This reliable, hardwired transformer converts standard household power to a safe 16-volt supply, perfect for standard wired door chimes. Designed with a clamp-lock nut for secure mounting in metal or non-metallic electrical boxes, it is UL listed for safety and built for long-lasting performance.
$14.95
DH140 Cost Effective Wired Doorbell
DH140
DH140 is a basic wired door chime for homes that need a simple replacement with front- and rear-door distinction. It plays a two-note ding-dong for the front door and a single note for a second door.
$9.95
DH1824 Simple Black Chime Push Button with White CenterThis product
DH1824
This Thomas and Betts wired product boasts a unique design element – a black box push button with a white circular button at the center. Its striking appearance is matched by its unbeatable price, now available on sale.
$6.95
1 item selected · Total: $6.95
Buying notes
Is this the right fit?
- Good fit when
- Use this when the existing wired doorbell system works and you are replacing the outside button for fit, finish, lighting, or weather exposure.
- Look at another option when
- The chime does not ring even with the old button's two wires touched together. That points to the transformer or the chime, not the button. If you want a lighted button, check that the existing chime is the mechanical type most lighted buttons need.
- Mounting and fit
- This button is listed as surface mount. Surface-mount buttons sit on top of the trim or siding with the wires through a small hole behind them. Flush or recessed buttons drop into a cutout so the faceplate sits closer to the wall. Compare the mounting style, faceplate size, and screw spacing with the old button so the new one covers the old footprint and lines up with the existing holes.
- Setup note
- Turn off power to the low-voltage circuit, note which wire went to which terminal on the old button, then move the two wires to the new button's screw terminals and mount it with the included screws.
What a neat-looking wired button at a "neater" price. When I see this product, I think of a big Oreo Cookie! Black box housing with a white center button invites you to push it. The unique thing about this product is that the mounting screws are hidden inside the box. Previous versions of this model were used to show the screws, and it distracted from the overall color decor of this design.
This surface-mounted wired doorbell push button will work with just about any product powered by a low-voltage doorbell transformer. Surface-mounted makes installation a snap. Wire the button and screw it into the wall you are attaching it to.
Thomas and Betts have manufactured door chimes and doorbells for many years and is known as one of the most reliable, most innovative manufacturers in the industry today. They stand behind their products with extended warranties and exceptional customer support as supplied by secure.1800doorbell.com.
- A white circular button located in the middle of the black box
- Black plastic housing
- Surface mounted for easy installs
- Dimensions are 7/8'' W x 2-1/8'' H x 3/4'' D
- For use with wired door chimes, buzzers, doorbells, and more
- Manufactured by Thomas & Betts (Carlon)
- The manufacturer recommends not using this product with a battery-powered chime.
- Three-year manufacturer's warranty
Specifications
| Brand | Carlon |
|---|---|
| Condition | New |
| Country Of Origin | China |
| Mounting Screw Distance | N/A |
| Product Dimensions | 0.75L x 0.875W x 2.125H |
| Button Mount Style | Surface |
| Lighted Button | Non Lighted Button |
| Button Shape | Rectangular |
| Finish | Black |
| Warranty | 1 Year |
| Door Count | Single-Door |
Reviews
5.00
★★★★★
1 verified review
Q&A
Questions & Answers
Answers from our team for DH1824 Simple Black Chime Push Button with White Center.
How do I know if a wired push button will fit?
Check the mounting style, outside dimensions, and screw-hole spacing. Surface-mount buttons sit on the wall, while recessed or flush buttons need an opening that matches the button body.
Answered for Wired Buttons
Can I replace only the wired doorbell button?
Yes, if the chime and transformer still work. A wired push button is usually a separate low-voltage switch, so you can replace a worn or dated button without replacing the entire doorbell system.
Answered for Wired Buttons
Why does my lighted wired button stay on?
Most lighted wired buttons use a small lamp or LED that stays lit so the button is visible at night. If the chime buzzes, hums, or does not ring correctly, check transformer and chime compatibility.
Answered for Wired Buttons
Can two apartments share one doorbell button?
They can, but then both chimes ring for every visitor, or one chime rings and the other unit never hears the door. The better setup is one button per unit on a single plate, such as the BC203 or BC268, with each button wired to its own chime. Visitors press the button next to the name they want.
Answered for Wired Buttons
Do I need a separate transformer for each unit?
No. One doorbell transformer can run two or three mechanical chimes as long as its VA rating covers them. A 16V 10VA transformer is marginal for two chimes; a 15VA or 30VA unit gives headroom. If each unit already has its own transformer, keep them: each button on the station is an independent switch and simply goes in series with its own unit's circuit.
Answered for Wired Buttons
Which multi-door button works with an electronic chime?
The unlighted ones. The BC203 and BC208 have plain contacts with no lamp, so they work with mechanical and electronic chimes alike. Lighted buttons pass a small current through the chime all the time to run the lamp, which most electronic chimes do not tolerate, so use the lighted BC268 only with mechanical chimes.
Answered for Wired Buttons
Where do the name cards go?
Each multi-door station has a pocket or window under each button. On the BC203 and BC208 the pocket is an open metal slot that takes a strip of card stock or a printed label, and it covers the mounting screw head. On the BC268 the window is a clear lens with a white card behind it, held by a snap-in carrier on the back. Name cards are not printed for you; most people use a label maker or a printed strip.
Answered for Wired Buttons
Manuals & Resources
Product support documents
Download product manuals and preview sound libraries for installation, pairing, and troubleshooting.
DH1824 Manual
Download the PDF resource for setup, product details, and support reference.
- Installation and setup steps for this product.
- Pairing, placement, and receiver or transmitter setup notes.
- Wiring, power, mounting, or accessory connection details.
