★★★★★Mark C.Nov 2, 2025
I had a hard time finding a replacement for my 1940s doorbell. This one is identical to the original and looks great.

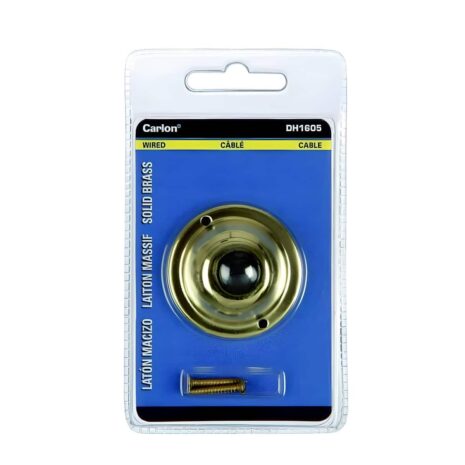

DH1605 Simple Round Brass Non Lighted Doorbell Button
$6.95

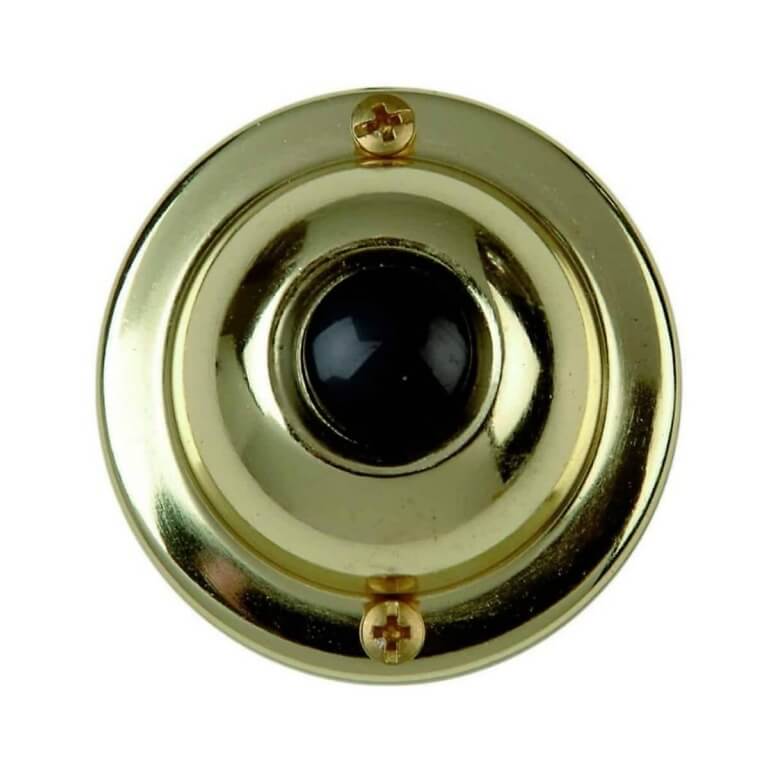

DH1605 is a round, non-lighted wired doorbell button with a polished brass face and black center button. It is a simple replacement for homes that want a traditional button without a lamp or oversized plate.
Safe checkout
Encrypted checkout with trusted payment processing
Secure SSL
Low Flat Rate Domestic ShippingExpedited & International ShippingSafe & Secure Checkout30-Day Satisfaction GuaranteeReal Customer SupportQuestions? 800-366-7235
Accessories & Add-Ons
Expand or complete your system with compatible components.
IQ America DT-1610A Wired Doorbell Transformer (16V / 10VA)
DT-1610A
Ensure your doorbell rings loud and clear with the IQ America DT-1610A. This reliable, hardwired transformer converts standard household power to a safe 16-volt supply, perfect for standard wired door chimes. Designed with a clamp-lock nut for secure mounting in metal or non-metallic electrical boxes, it is UL listed for safety and built for long-lasting performance.
$14.95
DH251, DH252, DH253 & DH257 Wired Doorbell - Use Batteries or Doorbell Transformer
DH250
The DH251 (aged brass), DH252 (white), DH253 (satin nickel) and DH257 (brushed bronze) are wired doorbell chimes that run on either four C batteries or a 16V transformer. They are useful when you want a wired-style indoor chime but do not yet have transformer power at the installation point.
$6.95
DH1605 Simple Round Brass Non Lighted Doorbell ButtonThis product
DH1605
DH1605 is a round, non-lighted wired doorbell button with a polished brass face and black center button. It is a simple replacement for homes that want a traditional button without a lamp or oversized plate.
$6.95
1 item selected · Total: $6.95
Buying notes
Is this the right fit?
- Good fit when
- Use this when the existing wired doorbell system works and you are replacing the outside button for fit, finish, lighting, or weather exposure.
- Look at another option when
- The chime does not ring even with the old button's two wires touched together. That points to the transformer or the chime, not the button. If you want a lighted button, check that the existing chime is the mechanical type most lighted buttons need.
- Mounting and fit
- This button is listed as surface mount. Surface-mount buttons sit on top of the trim or siding with the wires through a small hole behind them. Flush or recessed buttons drop into a cutout so the faceplate sits closer to the wall. Compare the mounting style, faceplate size, and screw spacing with the old button so the new one covers the old footprint and lines up with the existing holes.
- Setup note
- Turn off power to the low-voltage circuit, note which wire went to which terminal on the old button, then move the two wires to the new button's screw terminals and mount it with the included screws.
The DH1605 works well when you want a plain wired doorbell button that still looks finished on the trim. The round brass face keeps the appearance traditional, while the dark center button gives it enough contrast to be easy to spot during the day.
Because it is non-lighted, this model is usually a better fit for entries that already have good porch lighting or for shoppers who simply do not want a glowing button on the outside wall. It mounts on the surface and is sized for straightforward replacement work on many wired setups.
Details to know
- Polished brass base
- Black center push button
- Non-lighted design
- Surface mount installation
- Size: 1 3/4-inch diameter
- Weight: 0.1 lbs.
- For wired doorbell systems
If you want to compare styles, browse our wired doorbell buttons. If you need a complete indoor chime as well, see our wired doorbells.
Best Use for This Round Brass Wired Button
The DH1605 brass doorbell button is a simple replacement for a wired doorbell system when you want a traditional look without an illuminated button. It fits entries where a non-lighted wired push button is preferred, especially doors with porch lights, covered trim, or existing brass hardware.
What to Check Before Ordering
- System type: use with low-voltage wired doorbell wiring.
- Lighting preference: choose this model when you do not want a glowing button.
- Mounting space: confirm the round 1 3/4-inch face fits your trim or siding.
Specifications
| Brand | Carlon |
|---|---|
| Condition | New |
| Country Of Origin | China |
| Mounting Screw Distance | 1.3 |
| Product Dimensions | 1.75 inch Diameter |
| Button Mount Style | Surface |
| Lighted Button | Non Lighted Button |
| Button Shape | Circular |
| Finish | Brass |
| Warranty | 1 Year |
| Door Count | Single-Door |
Reviews
5.00
★★★★★
6 verified reviews
★★★★★Robert M.Mar 15, 2024
Perfect!
★★★★★John N.Oct 11, 2022
Doorbell was exactly as ordered and delivered very timely (twice - see below), and it works. One hiccup. When I received the first delivery and sought to test it (including having my local hardware store put it on a current tester) before final securing of wires and installation, it appeared not to work. I notified customer service, and was advised that a replacement would be sent, without the need for returning the first one. The second one arrived promptly, but upon testing again appeared not to work. Puzzled, I then pried thing apart to investigate, and discovered that because of the construction, any test that does not tighten the contact screws completely or mostly completely, will make it appear that the button does not work. I suggest perhaps put something in the box that makes this clear. Now, of course, I have two working gizmos, one installed and one extra that I do not need. Can I somehow use the promised delivery coupon to return the extra one to you?
★★★★★Randall H.Aug 18, 2021
I have not hooked up the button yet but it looks very nice and classic, the brightness of the brass ring makes the black button very visible, no need for a light-up button here
★★★★★Robert P.Sep 27, 2020
Small, classy brass, easy to install and it works.
★★★★★Lisa M.Apr 20, 2020
Always quick shipment when I order!
Q&A
Questions & Answers
Answers from our team for DH1605 Simple Round Brass Non Lighted Doorbell Button.
How do I know if a wired push button will fit?
Check the mounting style, outside dimensions, and screw-hole spacing. Surface-mount buttons sit on the wall, while recessed or flush buttons need an opening that matches the button body.
Answered for Wired Buttons
Can I replace only the wired doorbell button?
Yes, if the chime and transformer still work. A wired push button is usually a separate low-voltage switch, so you can replace a worn or dated button without replacing the entire doorbell system.
Answered for Wired Buttons
Why does my lighted wired button stay on?
Most lighted wired buttons use a small lamp or LED that stays lit so the button is visible at night. If the chime buzzes, hums, or does not ring correctly, check transformer and chime compatibility.
Answered for Wired Buttons
Can two apartments share one doorbell button?
They can, but then both chimes ring for every visitor, or one chime rings and the other unit never hears the door. The better setup is one button per unit on a single plate, such as the BC203 or BC268, with each button wired to its own chime. Visitors press the button next to the name they want.
Answered for Wired Buttons
Do I need a separate transformer for each unit?
No. One doorbell transformer can run two or three mechanical chimes as long as its VA rating covers them. A 16V 10VA transformer is marginal for two chimes; a 15VA or 30VA unit gives headroom. If each unit already has its own transformer, keep them: each button on the station is an independent switch and simply goes in series with its own unit's circuit.
Answered for Wired Buttons
Which multi-door button works with an electronic chime?
The unlighted ones. The BC203 and BC208 have plain contacts with no lamp, so they work with mechanical and electronic chimes alike. Lighted buttons pass a small current through the chime all the time to run the lamp, which most electronic chimes do not tolerate, so use the lighted BC268 only with mechanical chimes.
Answered for Wired Buttons
Where do the name cards go?
Each multi-door station has a pocket or window under each button. On the BC203 and BC208 the pocket is an open metal slot that takes a strip of card stock or a printed label, and it covers the mounting screw head. On the BC268 the window is a clear lens with a white card behind it, held by a snap-in carrier on the back. Name cards are not printed for you; most people use a label maker or a printed strip.
Answered for Wired Buttons
