★★★★★Rawn R.Apr 14, 2026
Just what I needed and quickly delivered.
SaleButton Specs
Measurements and mounting details
| Length | 0.98" |
|---|---|
| Width | 2.6" |
| Depth | 2.6" |
| Shape | Square |
| Mounting Style | Surface Mount |
| Hole Distance | 1-13/16" |

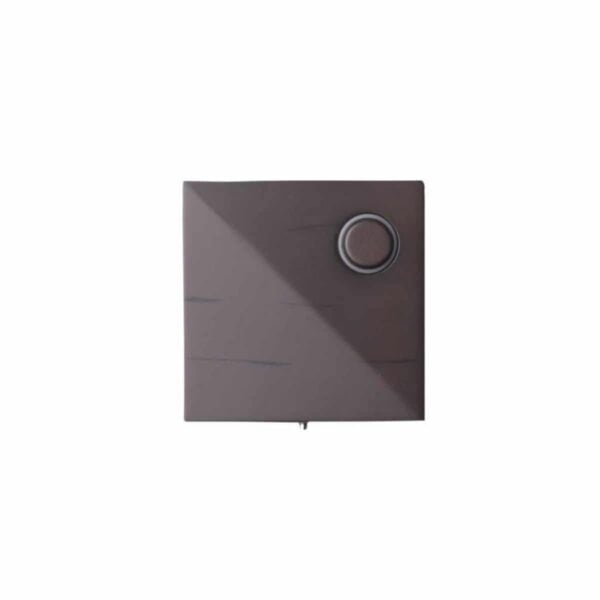

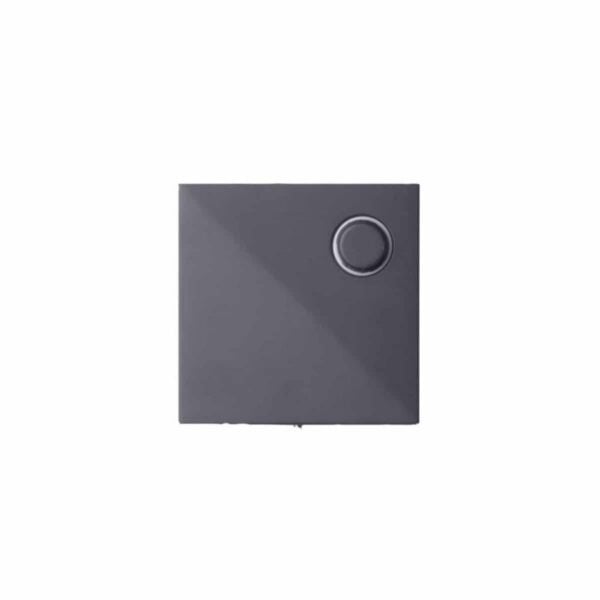

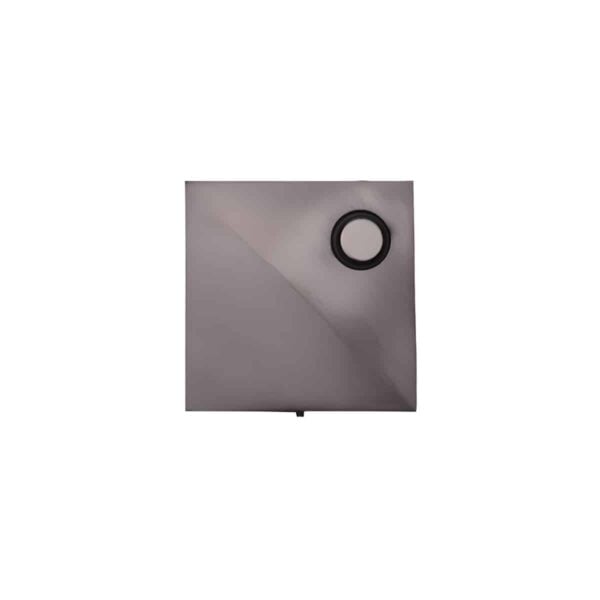

PB5009-FB Craftmade Lighted Square Modern Push Button Hidden Mounting
$19.95$23.95
A unique wired doorbell that is square and features the push button in the upper right-hand corner of the doorbell push button plate. Available in three colors, the push press is surrounded by a warm halo-lighted glow.
Safe checkout
Encrypted checkout with trusted payment processing
Secure SSL
Low Flat Rate Domestic ShippingExpedited & International ShippingSafe & Secure Checkout30-Day Satisfaction GuaranteeReal Customer SupportQuestions? 800-366-7235
Accessories & Add-Ons
Expand or complete your system with compatible components.
T1610 Craftmade 16V 10VA Wired Doorbell Transformer
T1610
The T1610 Craftmade doorbell transformer provides steady 16V power output for wired doorbell systems. Built with durable cast aluminum construction, this 10VA transformer supports single-chime applications within a 50-foot range. The professional-grade design includes 18-gauge wiring and maintains consistent voltage for dependable operation.
$22.95
CL4000-BN Craftmade Curved Loud Wired Door Chime
CL4000
CL4000 is a louder wired door chime from Craftmade with a curved cover and three finish options. It fits homes that want a stronger hardwired chime without stepping into a commercial-style buzzer or alarm device.
$47.95
0 items selected · Total: $0.00
Buying notes
Is this the right fit?
- Good fit when
- Use this when the existing wired doorbell system works and you are replacing the outside button for fit, finish, lighting, or weather exposure.
- Look at another option when
- The chime does not ring even with the old button's two wires touched together. That points to the transformer or the chime, not the button. If you want a lighted button, check that the existing chime is the mechanical type most lighted buttons need.
- Mounting and fit
- This button is listed as concealed mount. Surface-mount buttons sit on top of the trim or siding with the wires through a small hole behind them. Flush or recessed buttons drop into a cutout so the faceplate sits closer to the wall. Compare the mounting style, faceplate size, and screw spacing with the old button so the new one covers the old footprint and lines up with the existing holes.
- Setup note
- Turn off power to the low-voltage circuit, note which wire went to which terminal on the old button, then move the two wires to the new button's screw terminals and mount it with the included screws.
Talk about style! The boldness of this monochromatic push button will entrance your guests. Craftmade’s newest line of buttons has surpassed all expectations. Using high-quality materials and outstanding design, it is not hard to see why Craftmade is one of the leading door chimes and push button manufacturers. The LED-lighted center button accents the striking design, and this light will last for years and years. If you’ve been looking for a push button that all the neighbors will discuss, look no further; the PB5009 has arrived!
Square, modern push button with an intriguing appearance and hidden mounting screws. This state-of-the-art push button has an LED bulb and a unique angle effect.

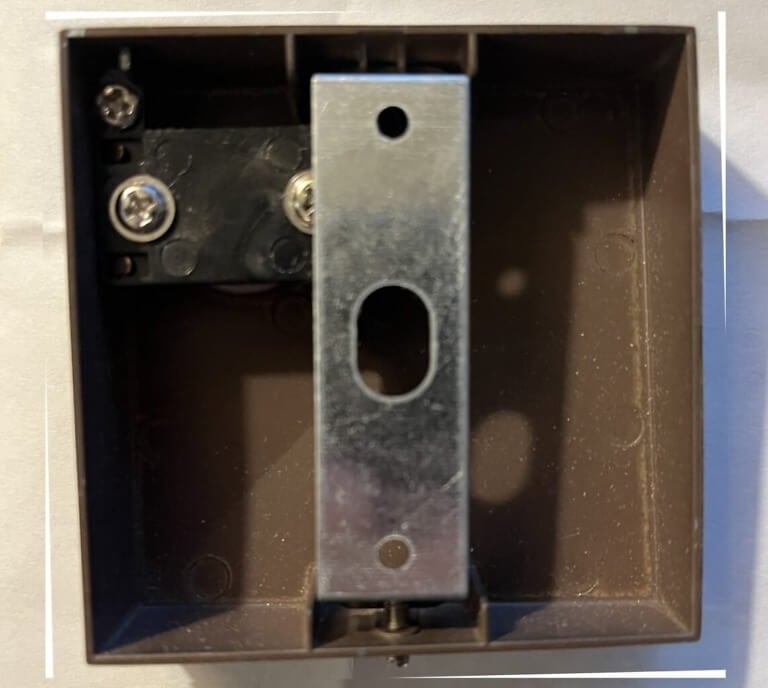

The back plate of the push button is screwed into the wall, and the decorative cover is inserted over the mounting plate. A tiny screw at the bottom of the cover is used to tighten the cover onto the mounting plate.
Product specifications
- Product dimensions: 0.98 in length × 2.6 in width × 2.6 in depth
- Item weight: 1.04 lb
- Mounting style: Surface Mount
- Material: Zinc
- Bulb count: 1
- Warranty: 1 Year Limited Warranty
- Country of origin: China
- Color temperature: 1800 K
- Color rendering index: 80
- Light power: 0.2 W
- Mounting location: Damp
Specifications
| Finish | Aged Iron, Brushed Nickel, Flat Black |
|---|---|
| Brand | Craftmade |
| Button Mount Style | Concealed, Surface |
| Condition | New |
| Lighted Button | Lighted Button |
| Button Shape | Square |
| Warranty | 1 Year |
| Door Count | Single-Door |
Reviews
5.00
★★★★★
8 verified reviews
★★★★★Karen R.Feb 18, 2026
Hard to find such an attractive modern doorbell like this.
★★★★★Janey M.Aug 27, 2024
Love, love, love. The modern aesthetic and quality construction in combination with ease of installation and quick delivery make me so glad we opted for this doorbell instead of or local box store. Only one issue, the two included mounting screws were soft and broke in half during installation. We had others at home, so it was not an issue.
★★★★★patrick T.May 9, 2023
I made an error on my order. When i discovered it that night i e-mailed a change request hoping it would be received before shipping. 1800Doorbell must have reacted immediately. When i telephoned a message a returned call from 1800Doorbell had already made the change and i now have what i meant to order in the first place. Excellent service!
★★★★★Michael D.Dec 11, 2022

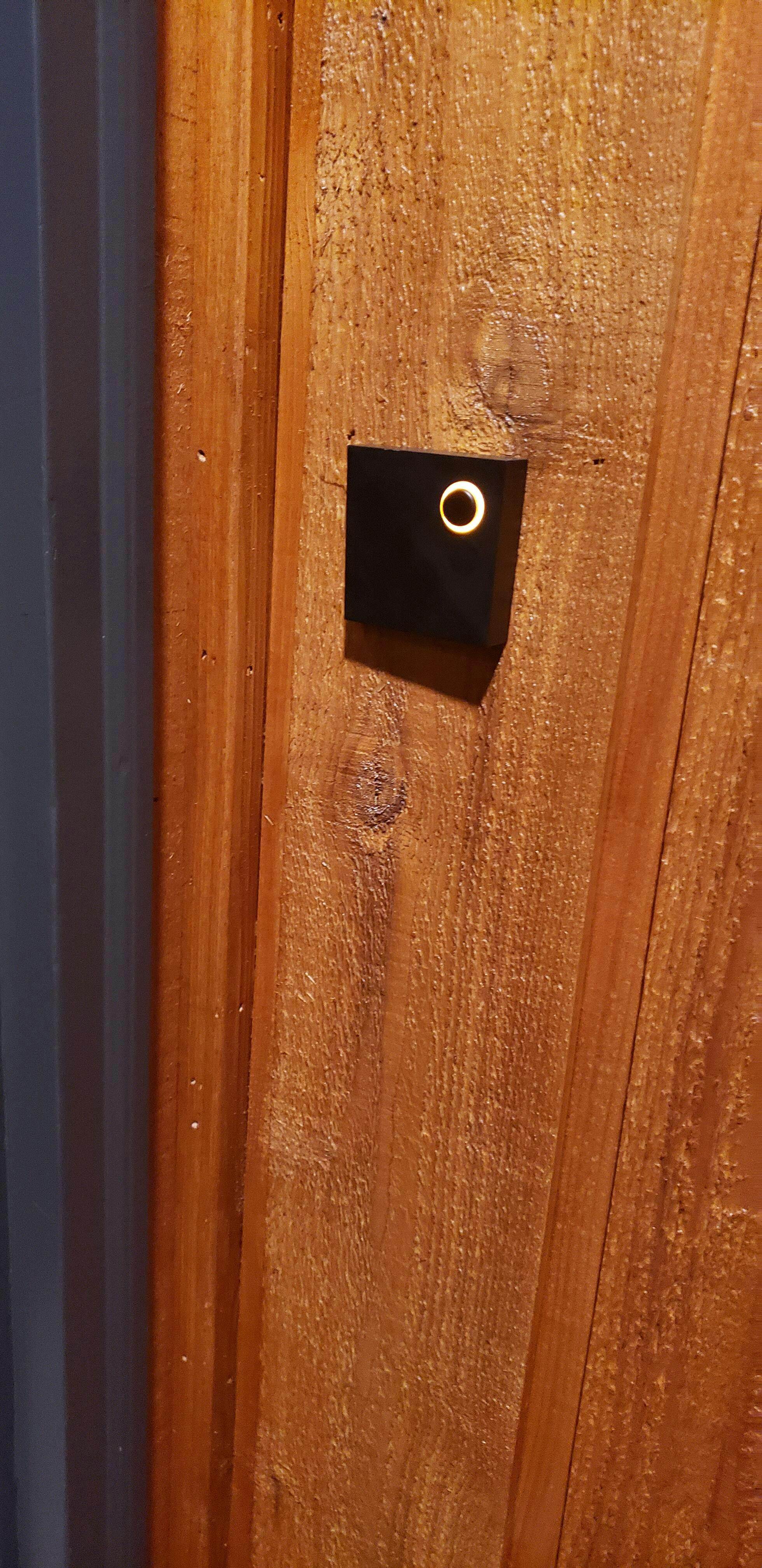

Nicely modern designed doorbell. Using it for my apartment buzzer. Works awesome.
★★★★★Isabella B.Nov 8, 2022
I was so happy to find this simple, functional and darned cute little push button to replace the existing one that had many coats of paint and no longer worked.
★★★★★SCOct 31, 2022
Arrived quickly, easily installed and looks great.
★★★★★Bruce W.May 1, 2022
NIce doorbell button with back-lighted glowing orange circle. Looks very modern and was simple to install, and MUCH more attractive than the typical $8-15 doorbell buttons.
Q&A
Product FAQs & Customer Q&A
Answers from our team for PB5009-FB Craftmade Lighted Square Modern Push Button Hidden Mounting.
How do I know if a wired push button will fit?
Check the mounting style, outside dimensions, and screw-hole spacing. Surface-mount buttons sit on the wall, while recessed or flush buttons need an opening that matches the button body.
Answered for Wired Buttons
Can I replace only the wired doorbell button?
Yes, if the chime and transformer still work. A wired push button is usually a separate low-voltage switch, so you can replace a worn or dated button without replacing the entire doorbell system.
Answered for Wired Buttons
Why does my lighted wired button stay on?
Most lighted wired buttons use a small lamp or LED that stays lit so the button is visible at night. If the chime buzzes, hums, or does not ring correctly, check transformer and chime compatibility.
Answered for Wired Buttons
Can two apartments share one doorbell button?
They can, but then both chimes ring for every visitor, or one chime rings and the other unit never hears the door. The better setup is one button per unit on a single plate, such as the BC203 or BC268, with each button wired to its own chime. Visitors press the button next to the name they want.
Answered for Wired Buttons
Do I need a separate transformer for each unit?
No. One doorbell transformer can run two or three mechanical chimes as long as its VA rating covers them. A 16V 10VA transformer is marginal for two chimes; a 15VA or 30VA unit gives headroom. If each unit already has its own transformer, keep them: each button on the station is an independent switch and simply goes in series with its own unit's circuit.
Answered for Wired Buttons
Which multi-door button works with an electronic chime?
The unlighted ones. The BC203 and BC208 have plain contacts with no lamp, so they work with mechanical and electronic chimes alike. Lighted buttons pass a small current through the chime all the time to run the lamp, which most electronic chimes do not tolerate, so use the lighted BC268 only with mechanical chimes.
Answered for Wired Buttons
Where do the name cards go?
Each multi-door station has a pocket or window under each button. On the BC203 and BC208 the pocket is an open metal slot that takes a strip of card stock or a printed label, and it covers the mounting screw head. On the BC268 the window is a clear lens with a white card behind it, held by a snap-in carrier on the back. Name cards are not printed for you; most people use a label maker or a printed strip.
Answered for Wired Buttons
