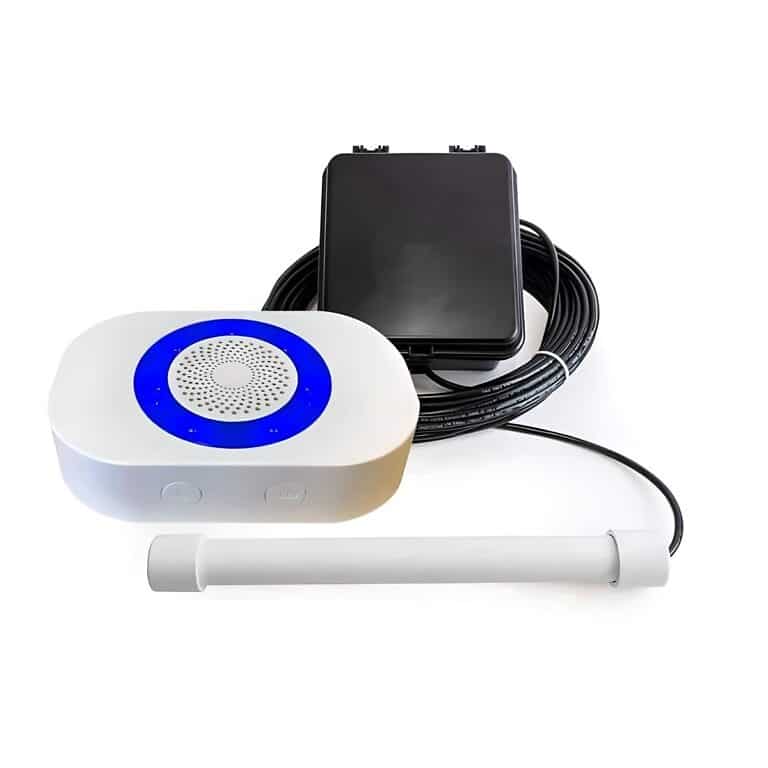

DCPA-4K-PLUS Dakota Alert Driveway Alert Kit with Enhanced Receiver

DCPA-4K-PLUS Dakota Alert Driveway Alert Kit with Enhanced Receiver

$269.99

Standard Shipping – Ships in 1 Business Day; Expedited Orders Ships Same Day If Ordered by 2PM EST

This is a probe-based (Magnometer) driveway alarm kit.  The probe based sensor is triggered when heavy metallic objects such as cars, trucks, etc., passes through the monitored zone.  The sensor then transmits a wireless signal, up to 5,000 ft. away to the receiver.  The receiver will then play a selected chime sound.  You can add transmitters and receiver to expand your system.

GTIN 891179000874 SKU: DCPA-4k-Plus

More Info...

Download user manual
View cart

Description

I Need a Driveway Alarm Kit that Detects Only Cars at a Very Long Distance

Many driveway alarm kits feature a passive-infrared sensor that is triggered when a combination of heat and movement are detected within the monitored zone of the sensor.  While this is a great feature if you want notifications for people and cars, if you live in a wooded area or an area with many animals, or do not want notification if people pass through the zone, a magnetometer based probe sensor is a great choice.

How Does this Driveway Monitoring Kit Work?

This driveway monitoring kit will detect vehicles only that pass through the monitored zone and send a wireless signal up 5,000 ft. away to the plug-in receiver.  The sensor features a magnetometer probe you bury parallel to the driveway.  This creates a detection zone of 12′-13′.  50’ft of burial cable connects to the transmitter, which allows you to hide the transmitter and mount it to a post or near-by tree.  Additional burial cable lengths are available for an additional cost–please call or email for additional information.

How the Dakota Driveway Sensor Probe Works:

When car passes through this zone, the transmitter will send a wireless signal up to 5,000 ft. to the receiver.  This is a line-of-sight distance.  Environmental factors such as terrain, metal, and building materials will diminish the signal, but with a range of up to a full mile, this tends to work for most customers.

How the Dakota 4000 Series Receiver Works:

The receiver featured in this kit will play 1 of 16 melodies when triggered.  This receiver is capable of working with up to 12 different transmitter/sensors at a time and the available melodies enable you to assign a different sound to each transmitter/sensor allowing you to distinguish which transmitter triggered the receiver.

The receiver plugs into a standard wall outlet and will sit on a flat surface or may be mounted on the wall.  The receiver features 2 x C-Form relays enabling you to integrate it with other systems, such as security systems, guard gates, etc.  In addition, the receiver features 1 x 12V DC output allowing you to connected devices such as a mini-strobe/siren, strobe lights, sirens, fire alarm bells, etc.

Driveway Monitor Probe Kit Receiver Features:

  • Each receiver will work with up to 12 transmitter/sensor.
  • Add as many add-on receivers as you want.  This allows you to spread receivers through-out your location to better distribute the sound.
  • The receiver has a volume control and will play one of sixteen different melodies.
  • Receiver plugs into a standard wall outlet.
  • Receiver is indoor rated only.
  • Range from transmitter to receiver is up t0 5000 ft.  Actual range will vary depending on specific environment.
  • Receiver features 2 x C-Form relays and 1 x 12V DC output.

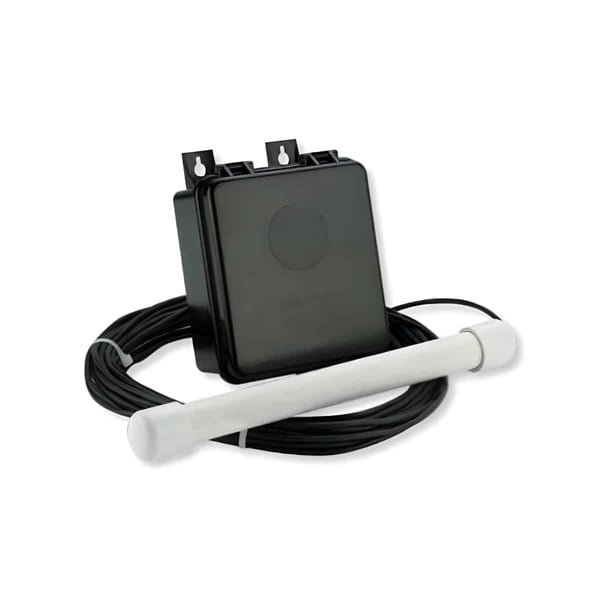

Driveway Probe Sensor/Transmitter Features:

  • Magnetometer probe is triggered by metallic objects.
  • Sensor will detect vehicles within 12′-13′ of buried probe.
  • 50 feet of burial cable connects probe to black transmitter box.
  • Powered by 4 x CR123A high-powered, long lasting lithium batteries.
  • Sensor/transmitter is outdoor rated.
  • Operating temperature range from -30F to 120F.

One year manufacturer’s warranty on products.

Product User Manuals

There are two user manuals to consult for this product.  The first is for the receiver and the second is for the driveway alarm probe.

Click to Hear the Sounds for the Dakota Alert Receiver:

Additional information

Brand

Dakota Alert

Compatibility

Dakota Alert 4000 Series

Complete Kit

Kit

Condition

New

Wireless Features

C-Form Relays
Expandable
Live 12V DC Output
Volume Control

Wireless Range

5000 ft.

Sensor Type

Magnetometer

Customer Reviews

Based on 23 reviews
91%
(21)
4%
(1)
4%
(1)
0%
(0)
0%
(0)
c
c.R.
Warehouse feasibility

Recommend for every warehouse. Works as described.

D
D.W.
Great product

Great service. Alarm that doesn't give false alarms.

P
P.J. (Osborne, US)

DCR-4000 Warehouse Doorbell Wireless Receiver

J
J.L.P. (Miami, US)

cannot use with my old receiver and have to order new one!

c
c. (Isle of Palms, US)
Warehouse feasibility

Recommend for every warehouse. Works as described.
